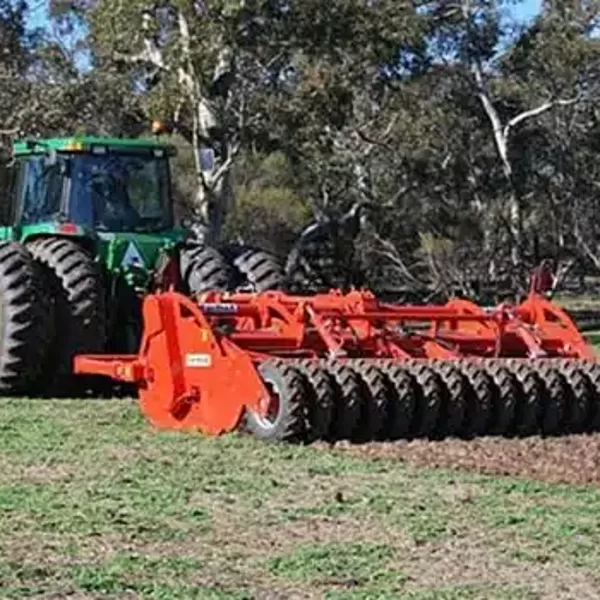

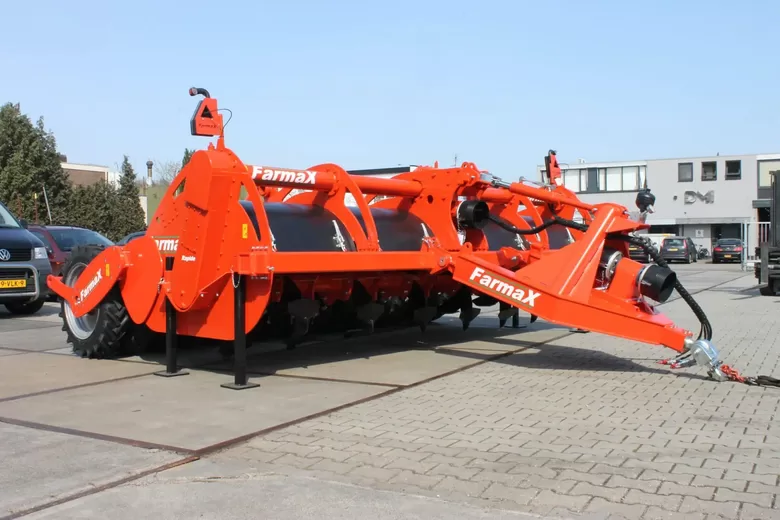

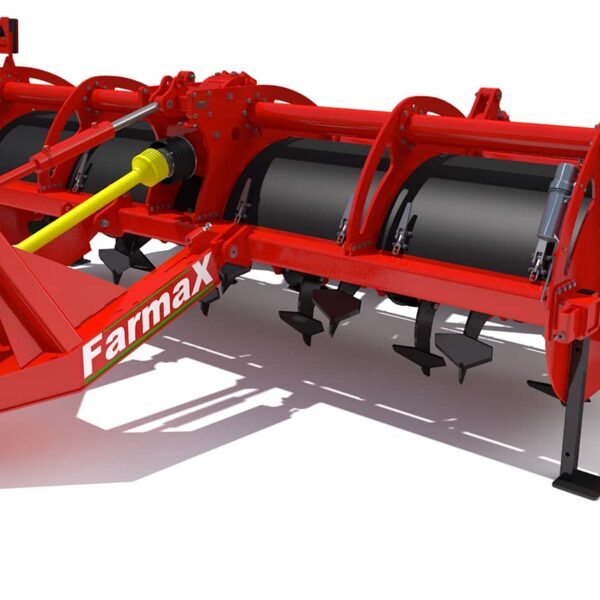

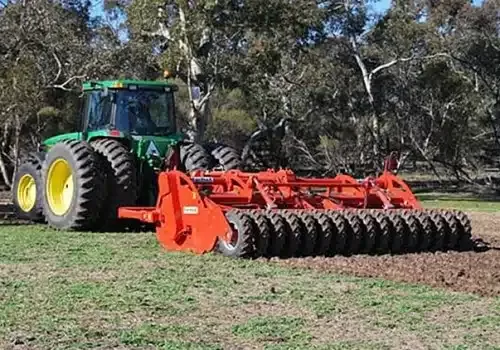

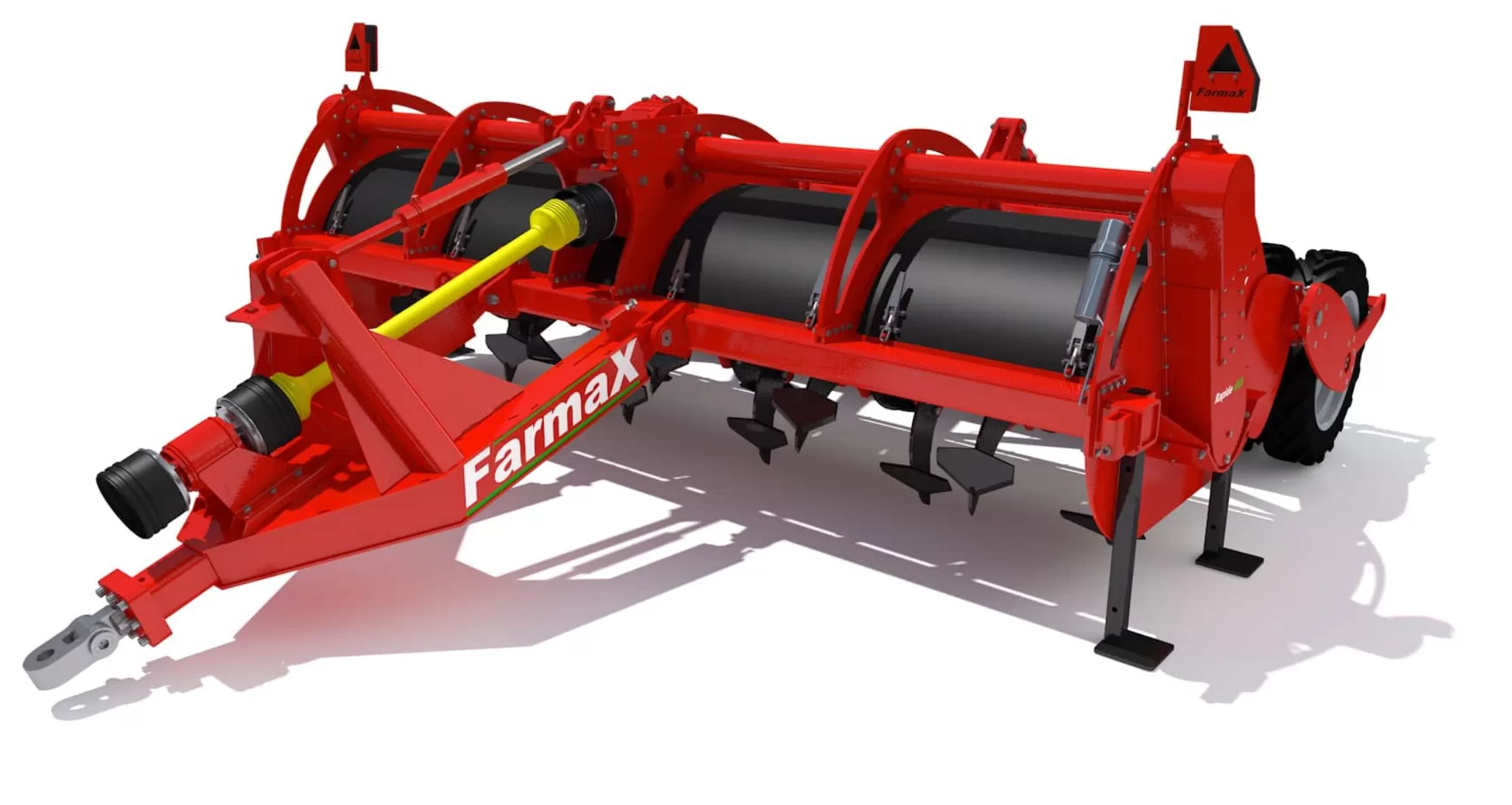

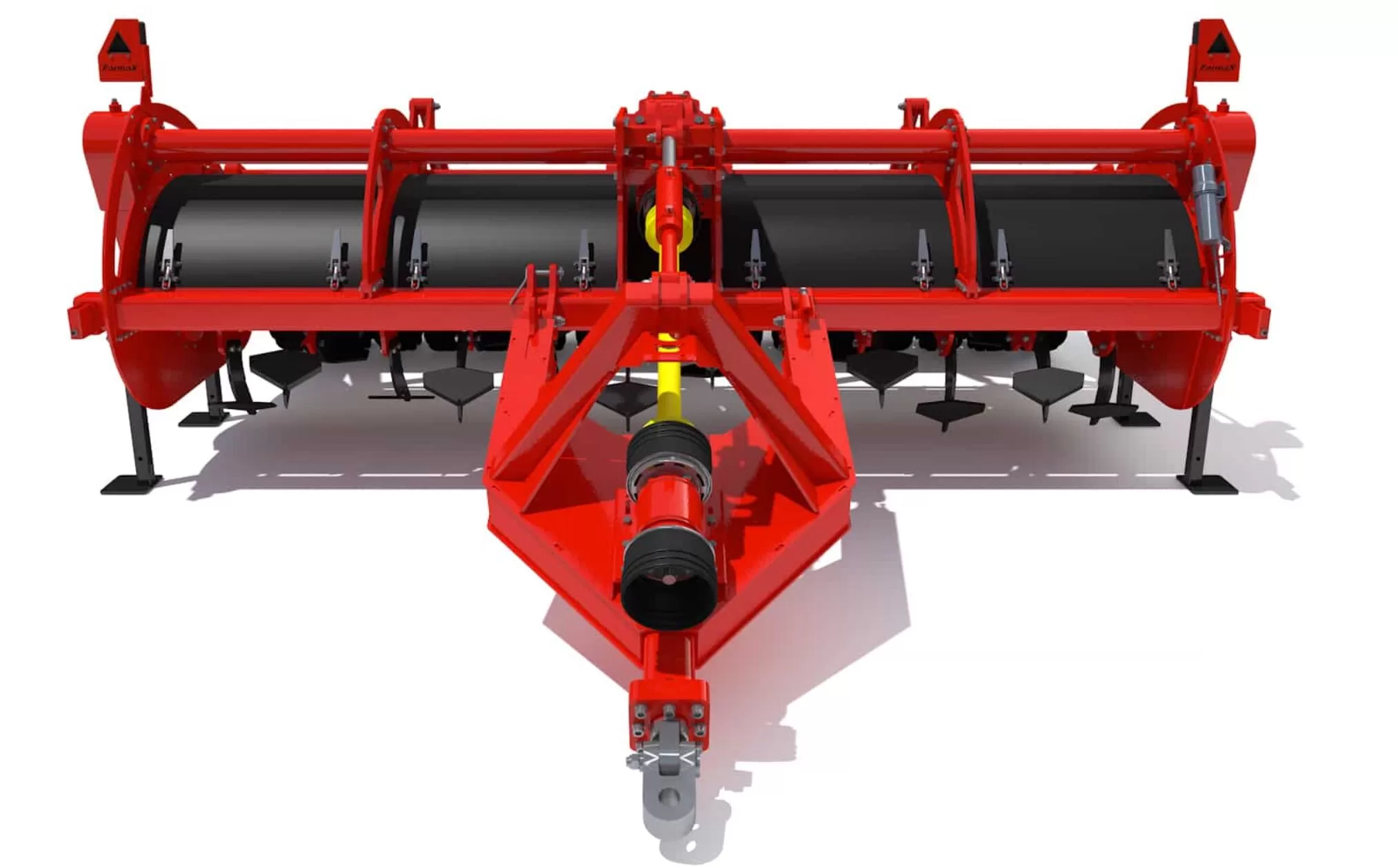

Farmax Rapide Trailed spader

The Farmax Rapide Trailed is a trailed spader with an operating width of no less than 4.5 metres.

This spader was specially developed for the Australian market. The Rapide Trailed can hold its own in all conditions, with an excellent tilling result and exceptional capacity. With a maximum spading depth of 40 cm, the Rapide Trailed tills heavy sand and clay soils quickly and without problems.




Consistent spading depth, optimum groundwater management

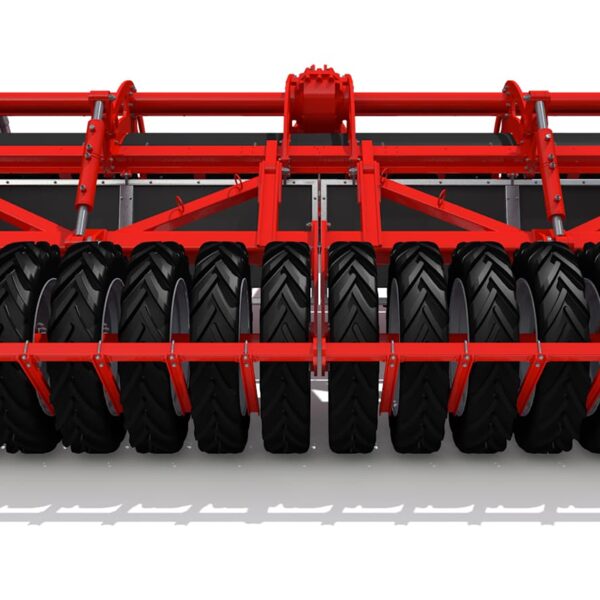

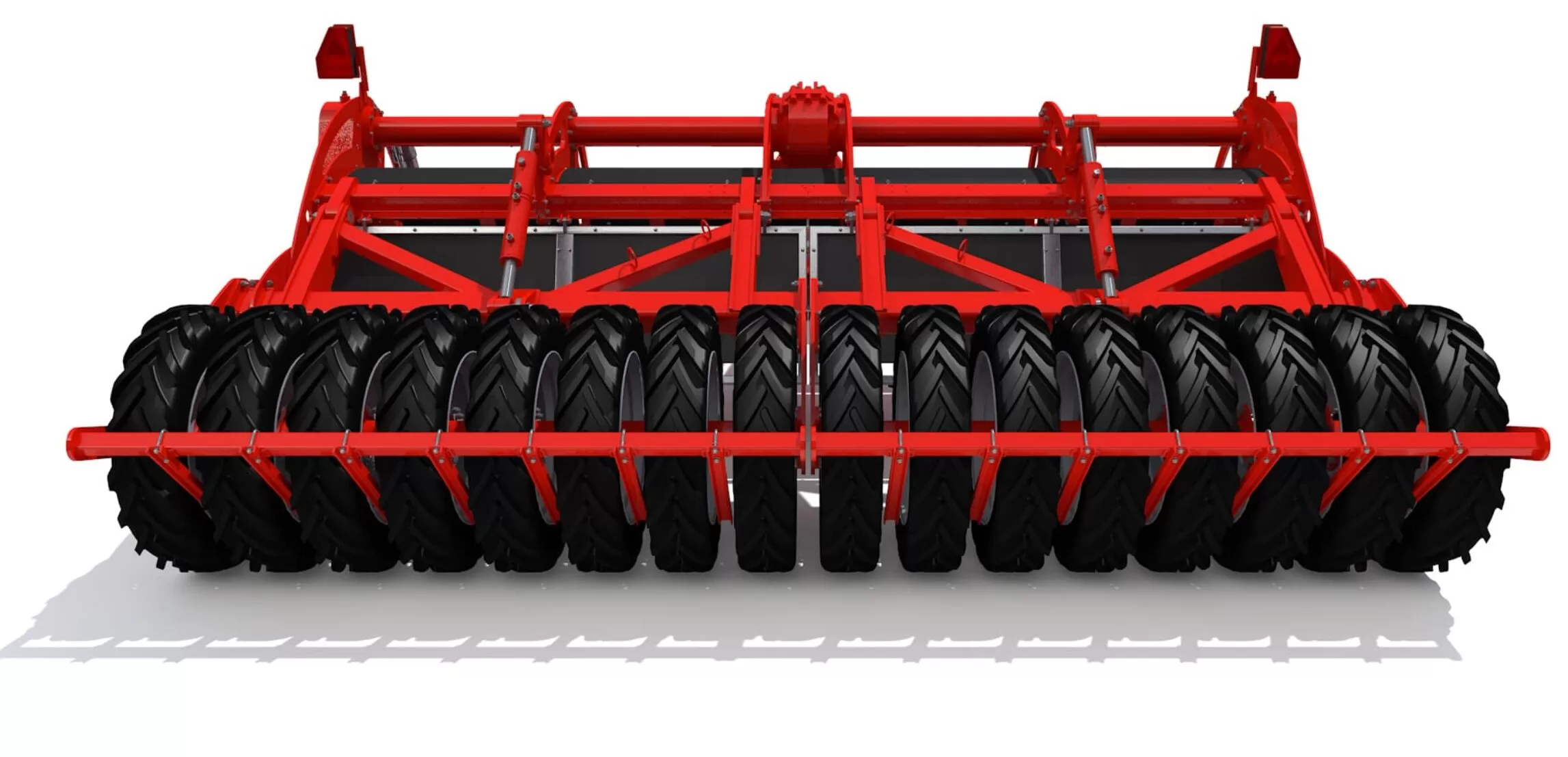

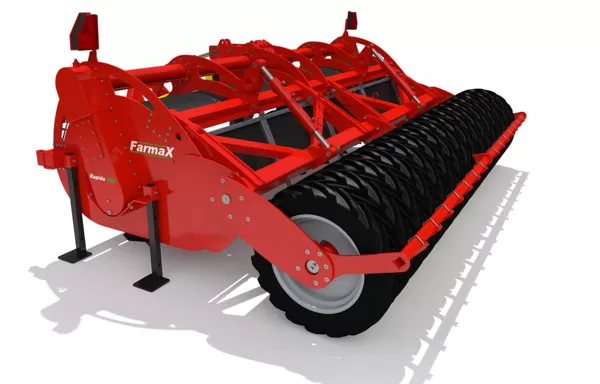

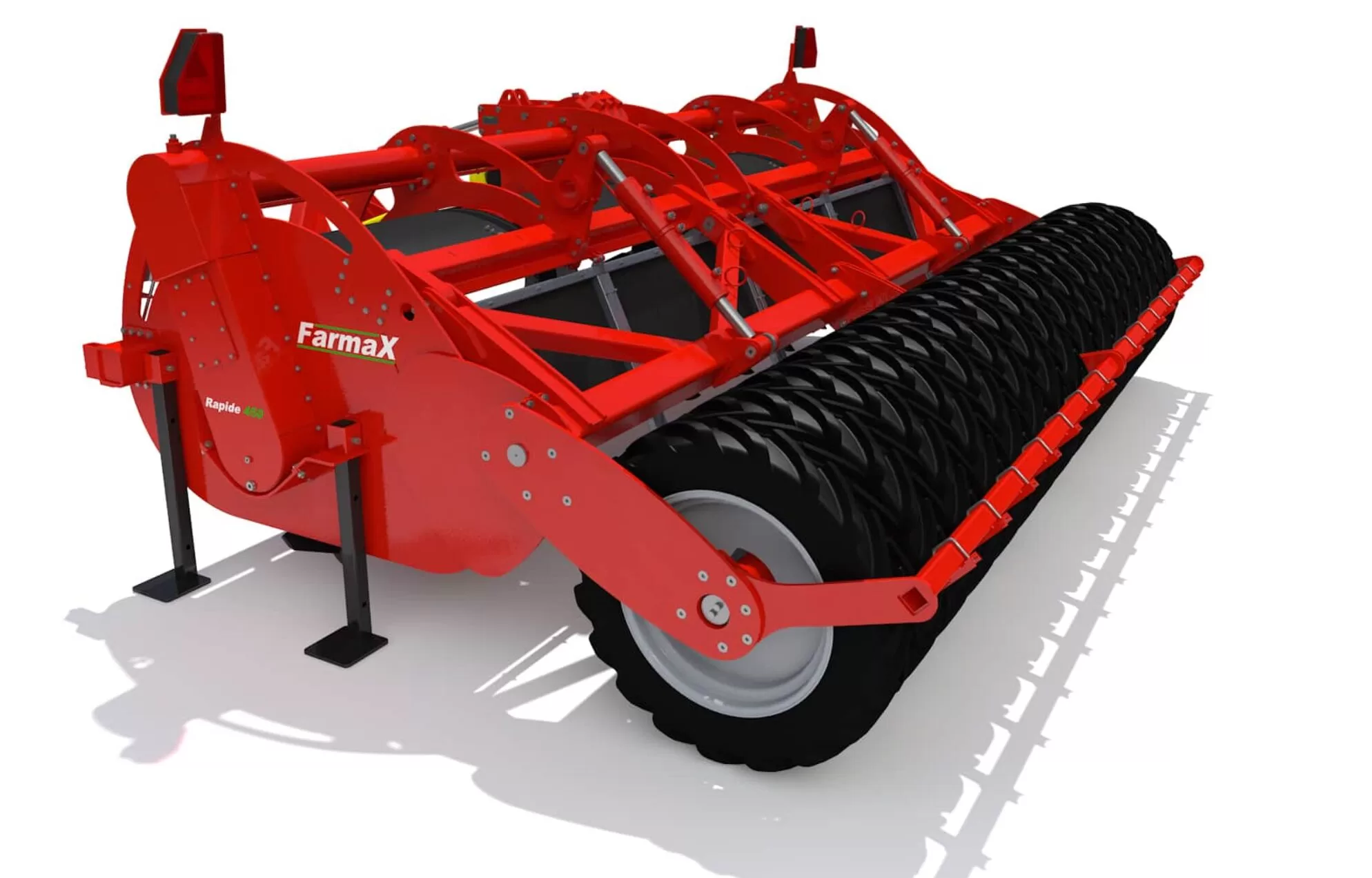

The Rapide Trailed is equipped as standard with a tyre roller consisting of two arrays of 8 tyres. This tyre roller guarantees a consistent rotavation depth and ensures that the ground is properly rolled after tilling. Furthermore, it ensures perfect restoration of groundwater management.

Super fast and extra manoeuvrable

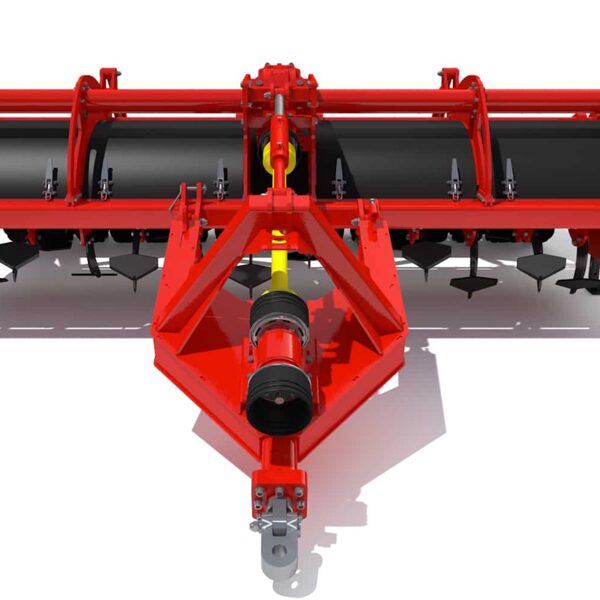

With a maximum towing speed of 8 km/hour, the Rapide Trailed is a really fast spader. The drive line is designed in such a way that the rotor can easily continue to to turn, even when the machine is at an oblique angle behind the tractor.



Advantages of this spader

  • Extra high capacity, thanks to very wide span
  • Low maintenance and very user-friendly
  • Tills heavy sand and clay soils without any problem
  • Specially designed tyre roller restores the groundwater management and guarantees consistent spading depth.
  • Towing speed up to 8 km/hour. (5 mph)

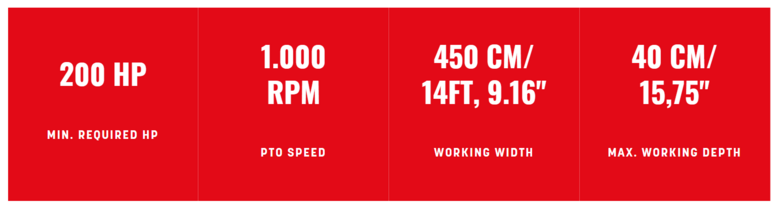

Specifications

  • Total weight: 7,500 kg
  • Drive: transmission case fitted with differential, extra heavy-duty drive line
  • Capacity: up to 3.4 hectares per hour
  • Power take-off revs: 1,000 r.p.m.
  • Tractor power: 200 to 300 HP

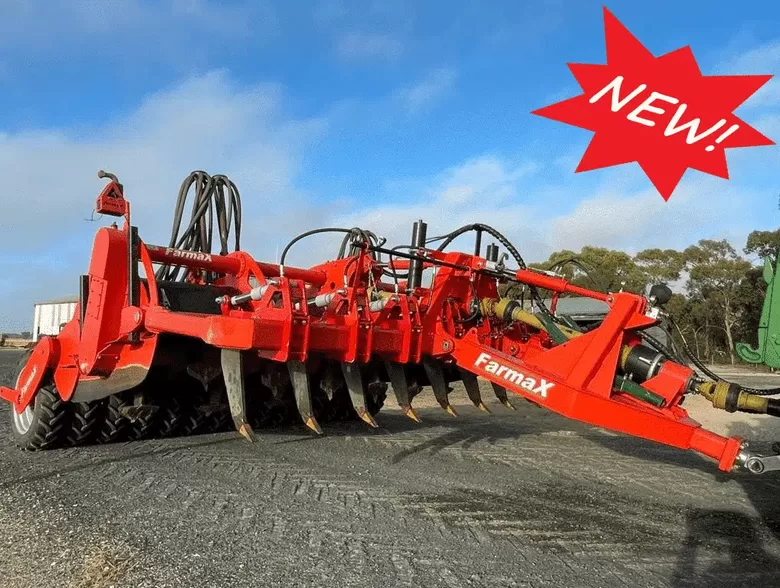

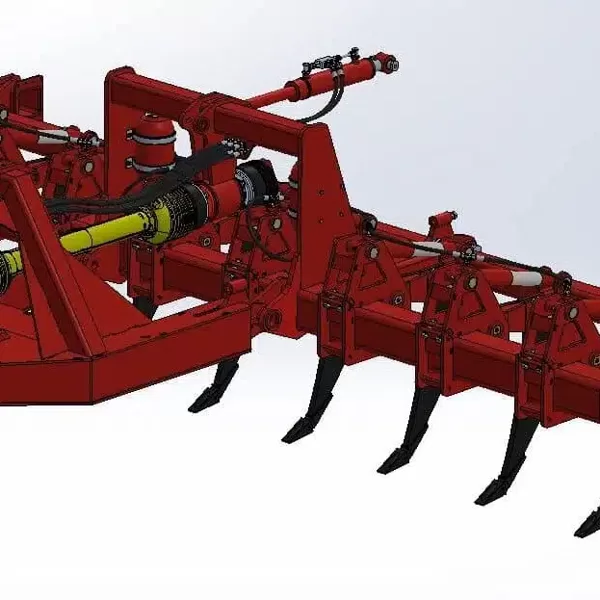

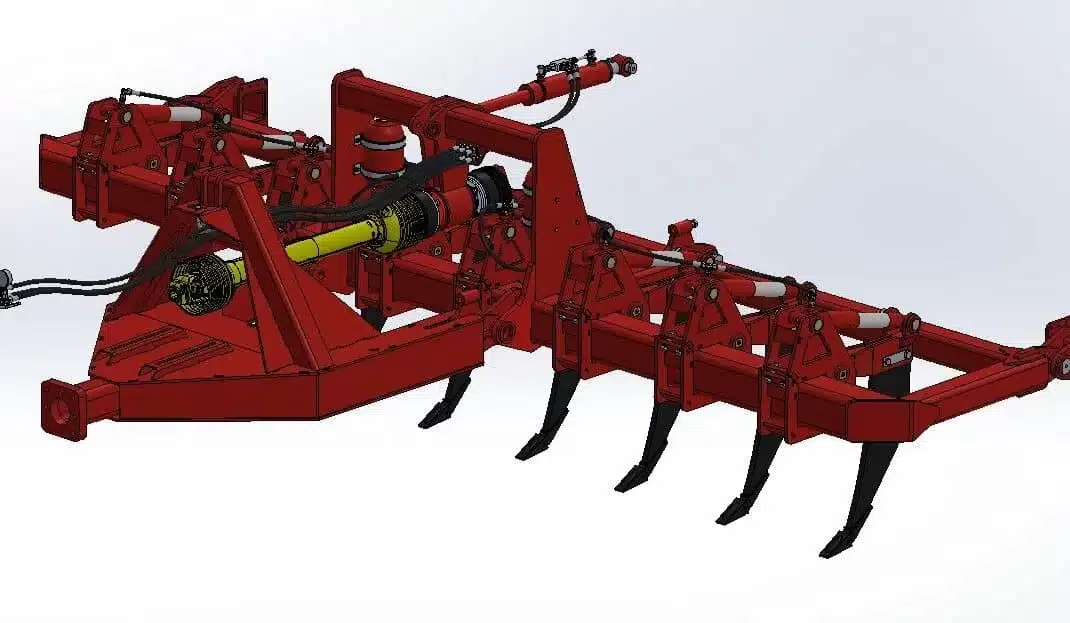

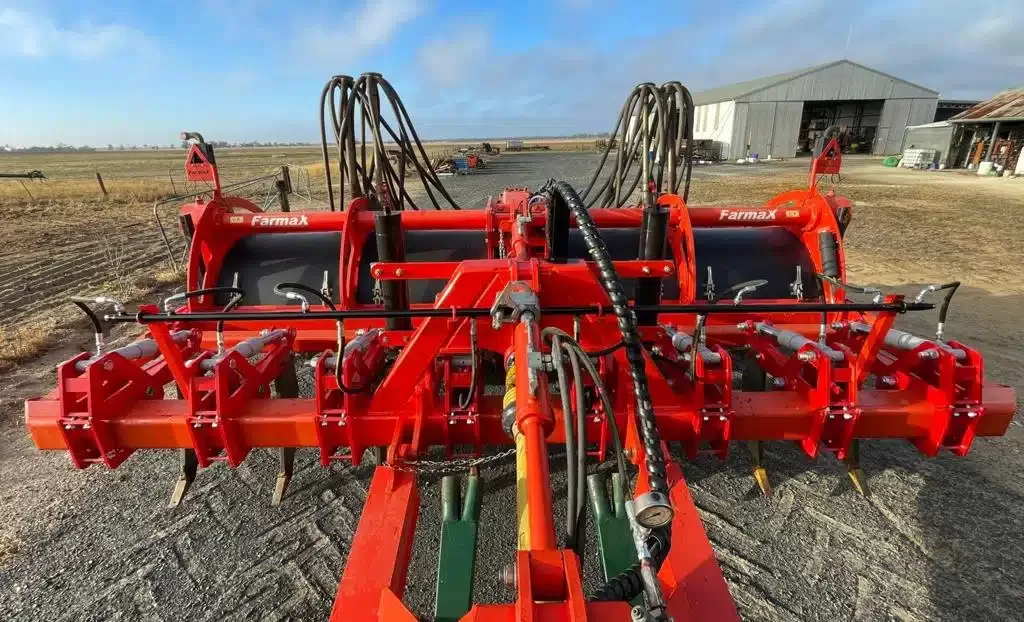

Farmax Ripper

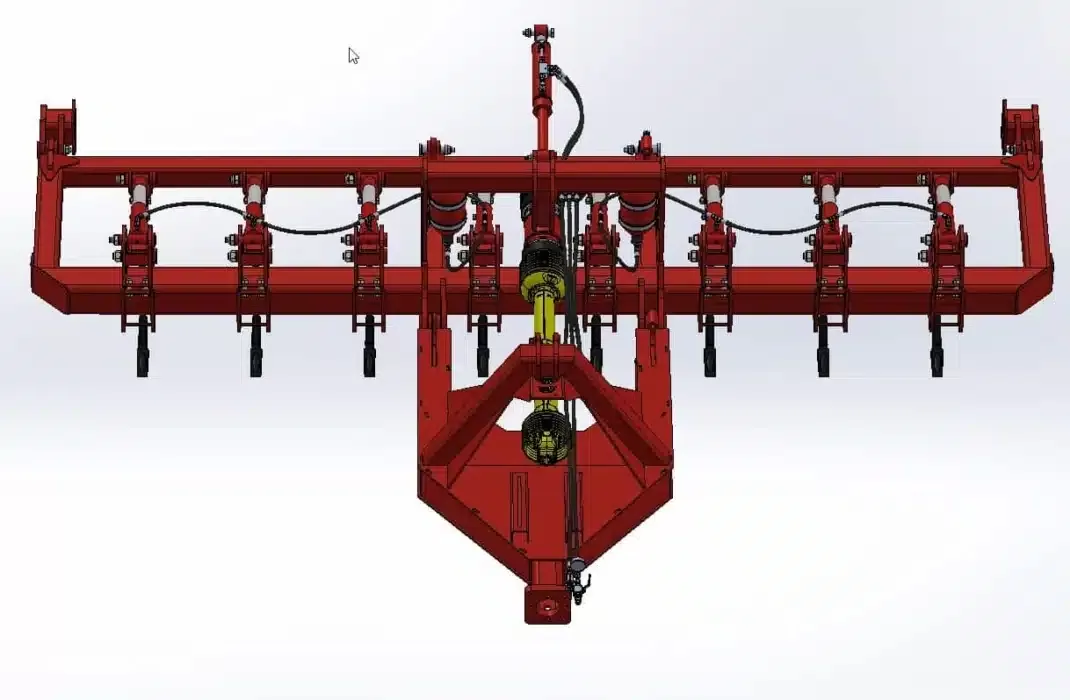

Especially for the Australian market, Farmax has designed a subsoiler frame that fits on the Farmax rapide trailed.

With the Farmax Ripper it is possible to do an extra depth tillage with the Rapide 450. This makes it possible to prevent soil compaction and to spade with this machine in one pass.

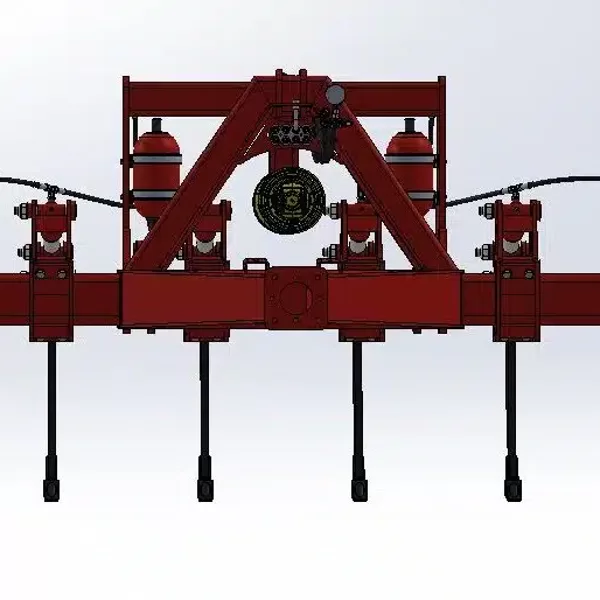

What makes this machine unique is the hydraulic protection of the tines, if the machine encounters a strange object in the soil, it automatically folds back hydraulically due to the back pressure. This hydraulic protection prevents any damage of the frame and tines.

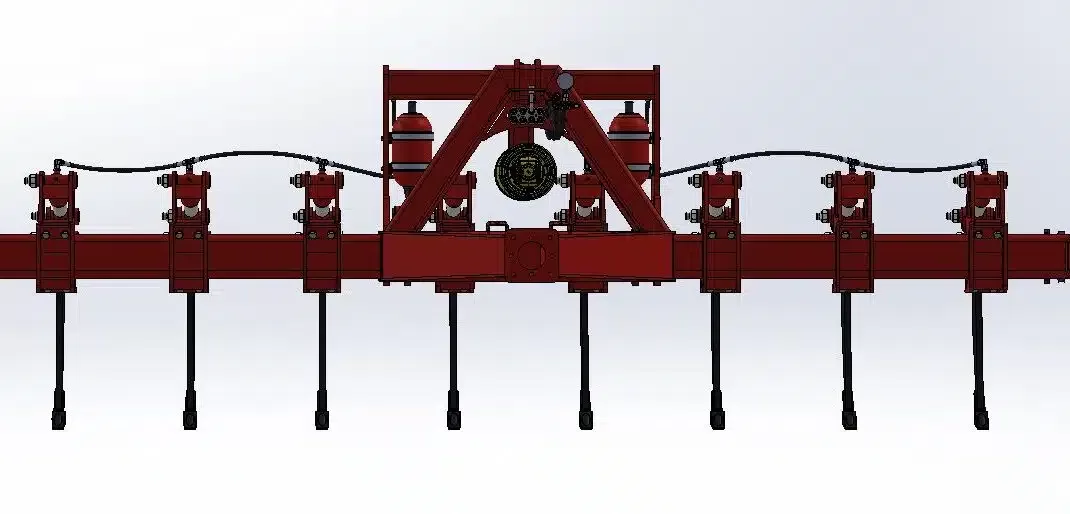

The Ripper consists of 8 tines of 75 centimeters long that can be individually arranged over the working width according to your own wishes. The subsoiler is also equipped with interchangeable steel tips, which increases the ease of work.
