Baffle plate nozzles with screw connection (3 pcs.)
Requirements for the Compact Loader
For compact loaders with total width up to 1.7 m
For compact loaders from 30 hp / Ideal 35 hp
The working pressure of the hydraulic system must reach at least 200 bar with at least 40 l of oil per min.
Options for TG 201
Water spray bar

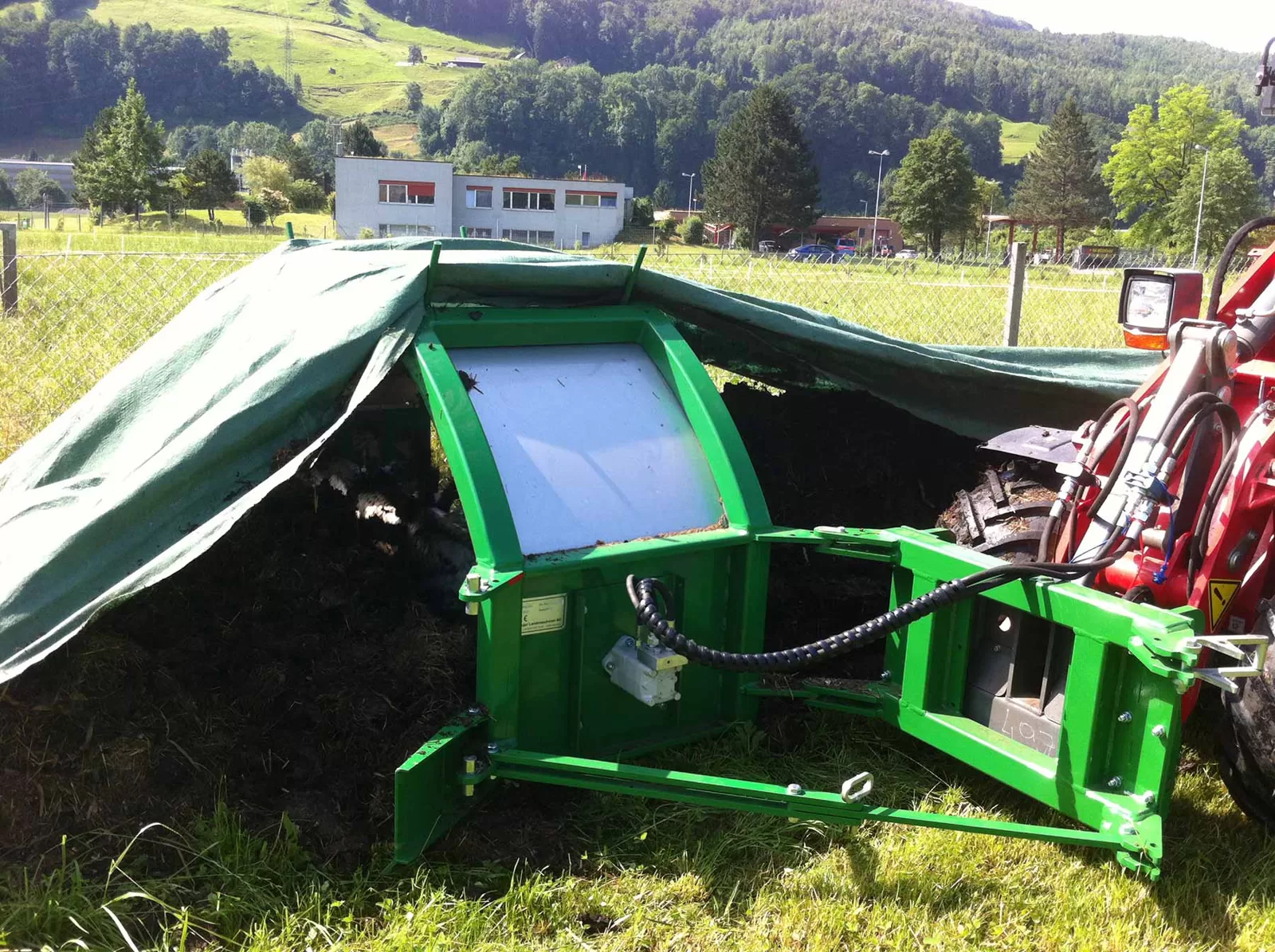

Fleece guides front and rear
Faster incl. parking bracket
Widening plates set *
Euro mount
Third-party loader mount
* For machine widths from 1.60 - 2.10 m
Ideal for agriculture, horticulture, organic farms and small communities
Capacity up to 300 m³/h.

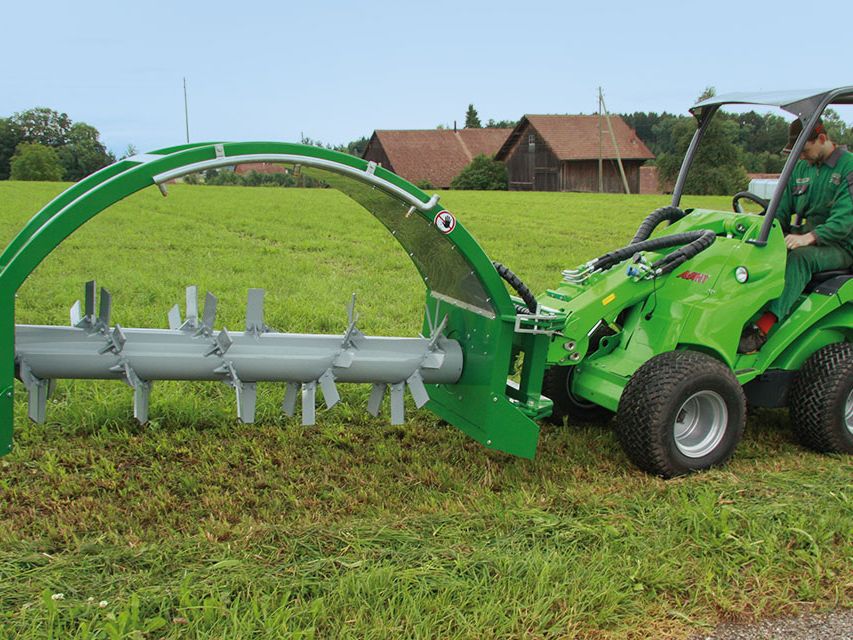

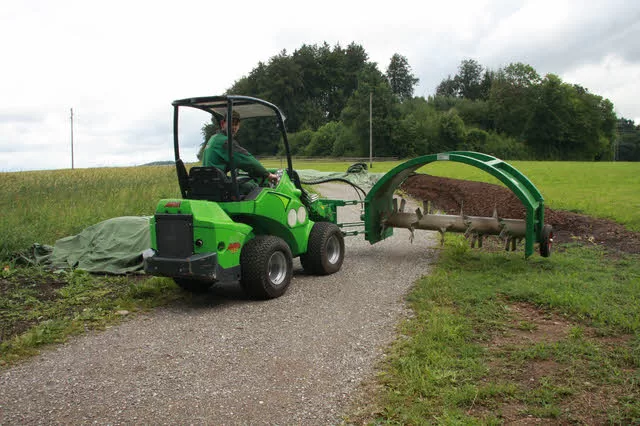

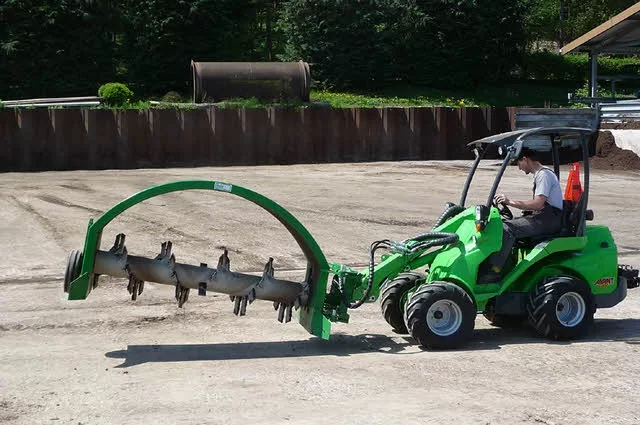

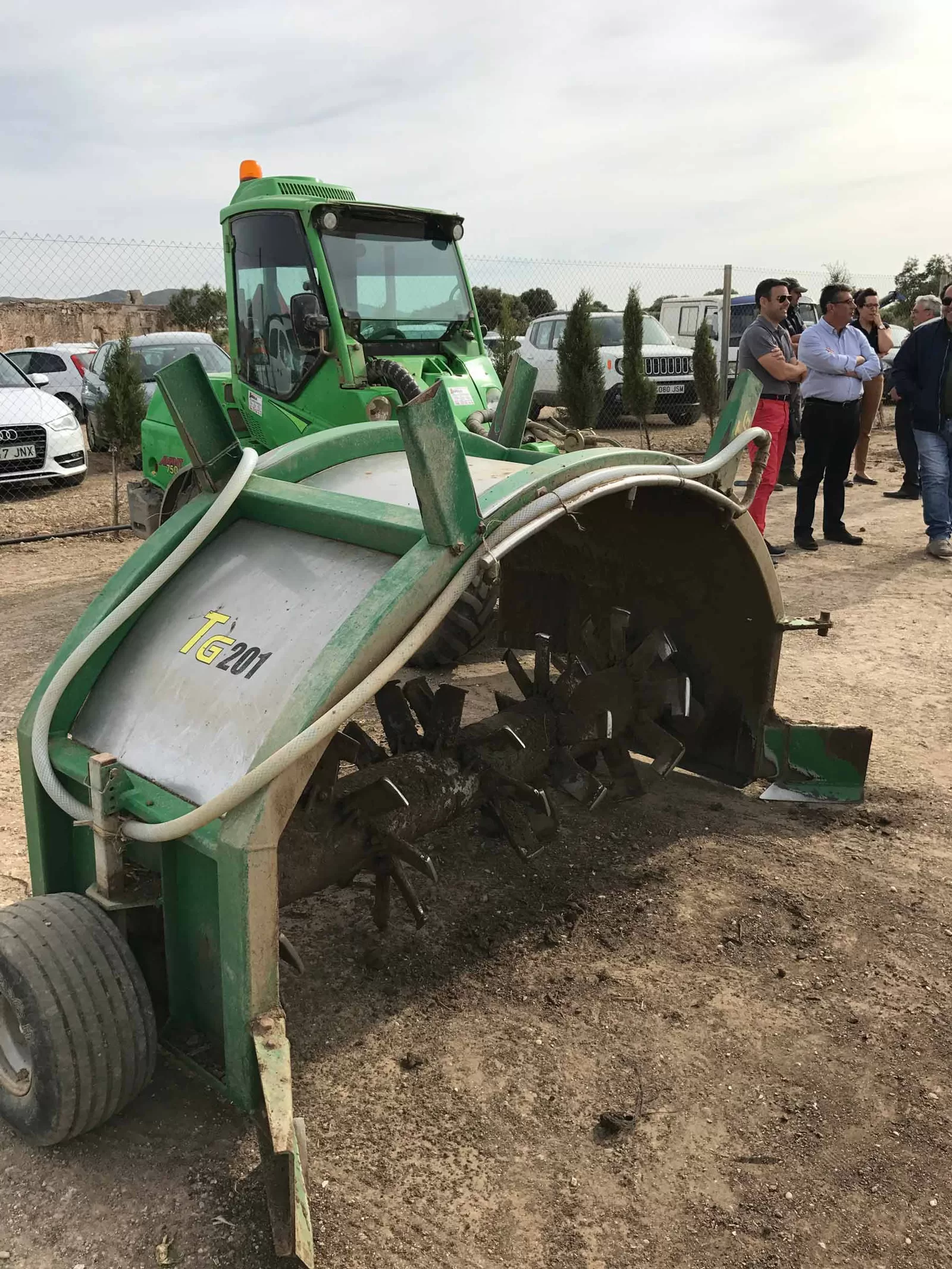

Maneuverable machine; TG 201 has a length (tranport position) of only 2.7 meters.
Low maintenance costs, easy maintenance
Easy to maneuver, simple to use

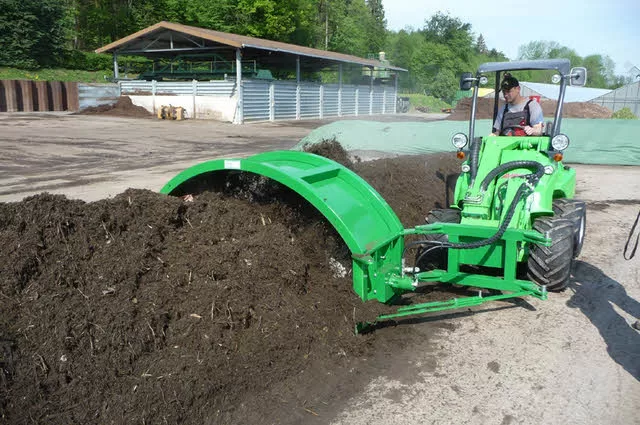

The massive construction of the tunnel-shaped dome and 5 mm steel achieves great stability and omits any weak points in the structure. In addition the powder coating protects against corrosion.
All the wear plates are made of chromed steel

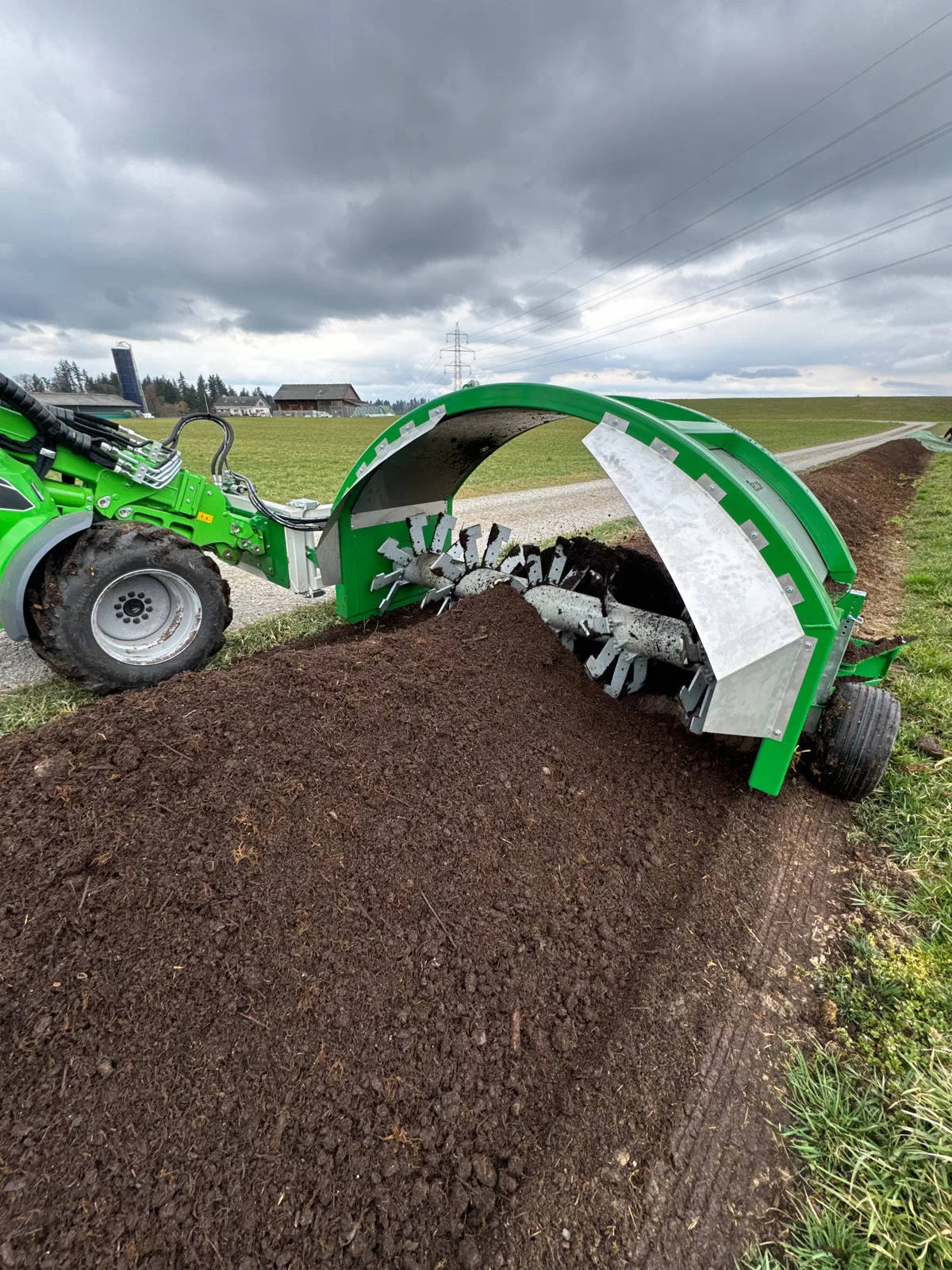

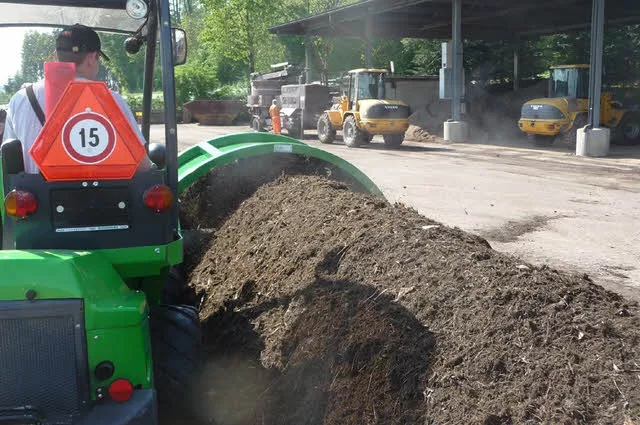

Robust axel with balanced turning, which properly turns the compost material (from the inside to the outside)
Fast aerobic composting; within 8 - 12 weeks, depending on the material
