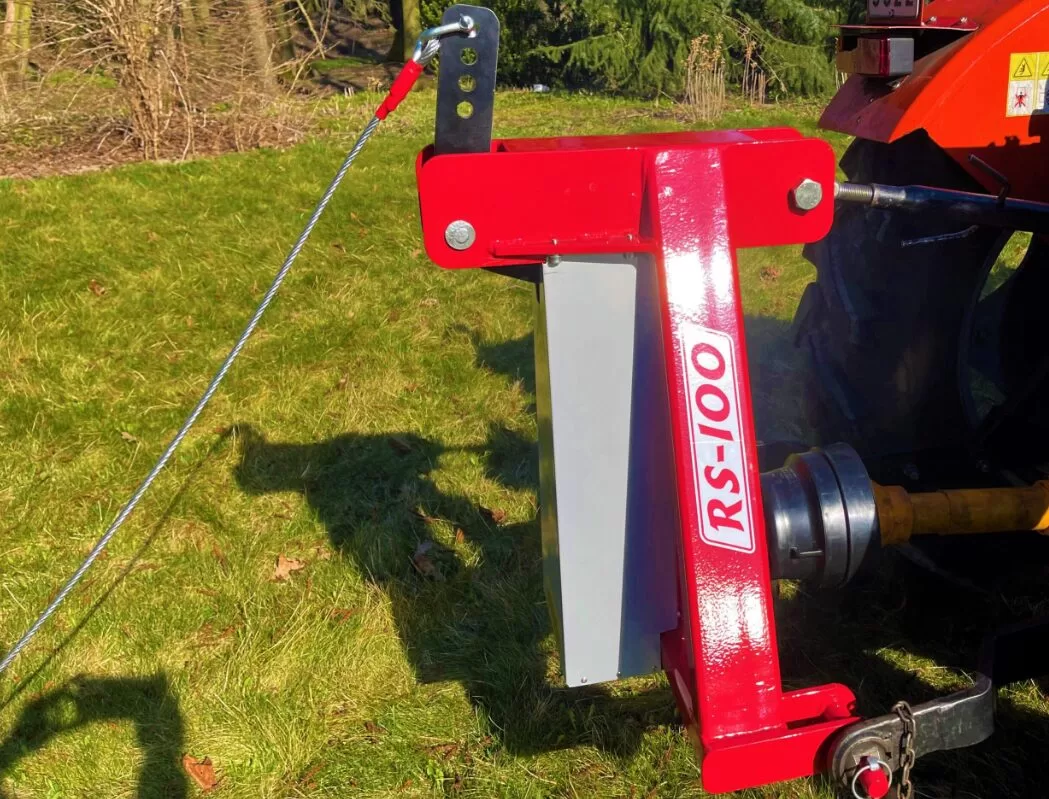

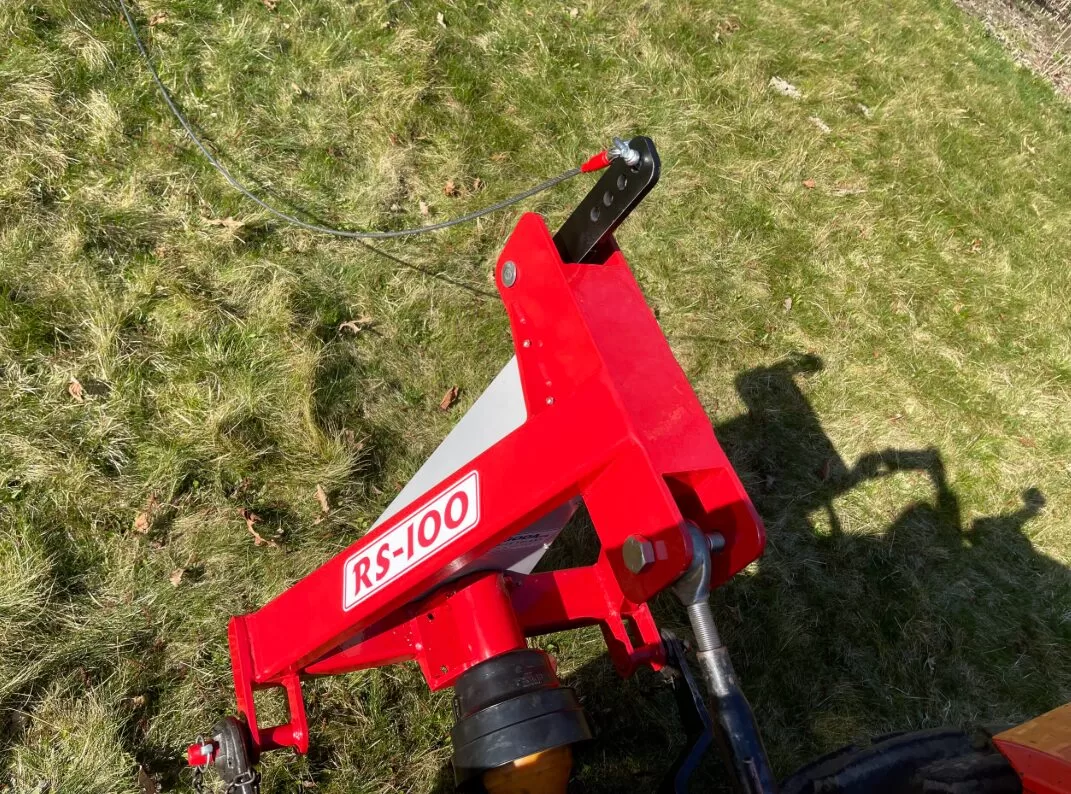

RS-100 Rope Tree Shaker
The rope tree shaker RS100 can save time and labor, especially for farmers who have few trees. it is designed to harvest fruits from big, medium, and small trees such as almonds, walnuts, apricots, pecan, plums, sour-cherries, olives, cider, mulberry and others.
Features:

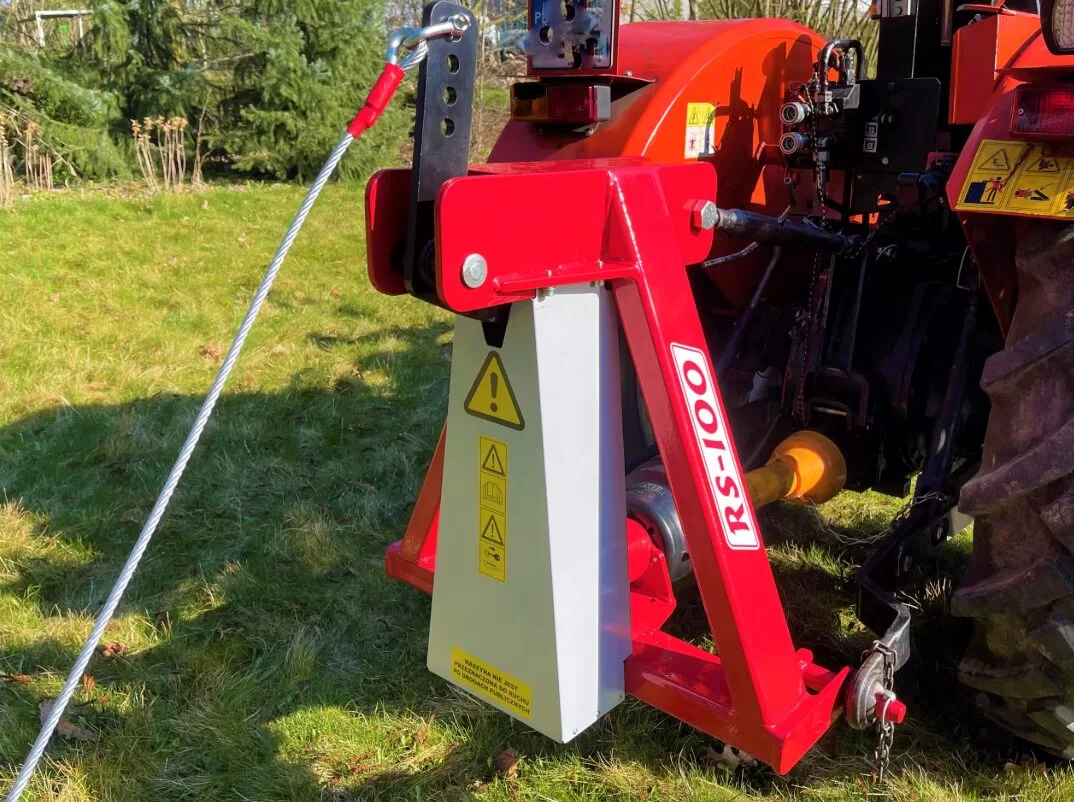

- The RS 100 shaker is mounted via the three-point linkage at the rear of the tractor and it is driven by a PTO with a profile of 1 3/8 ” 6 splines.

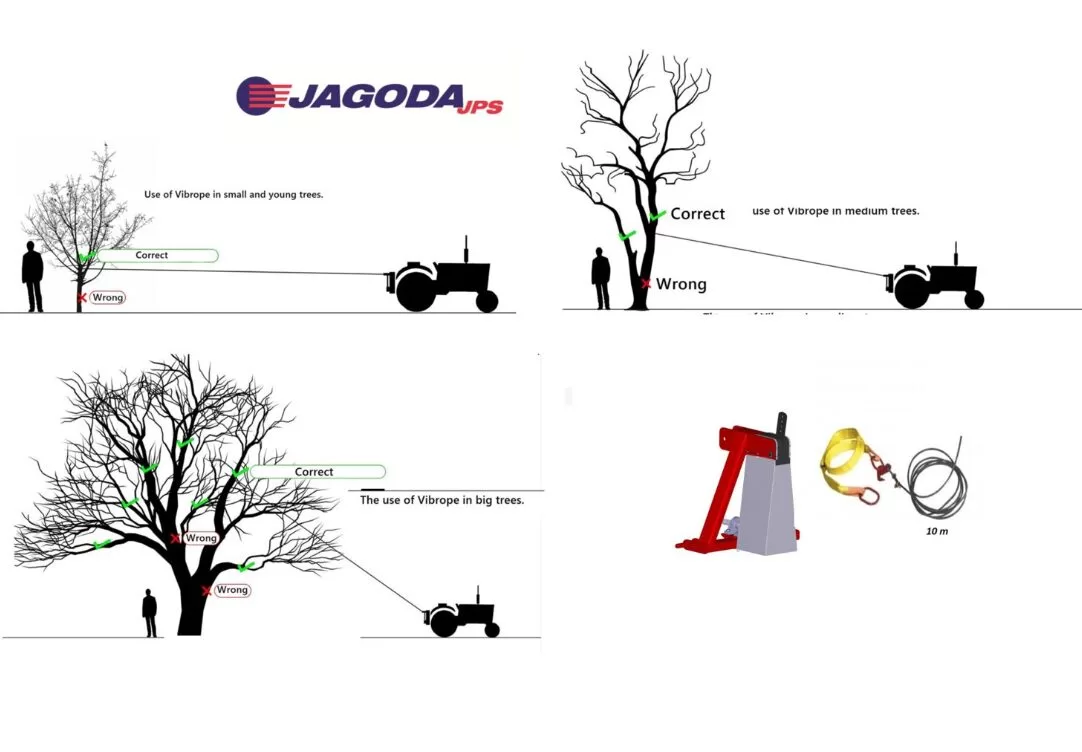

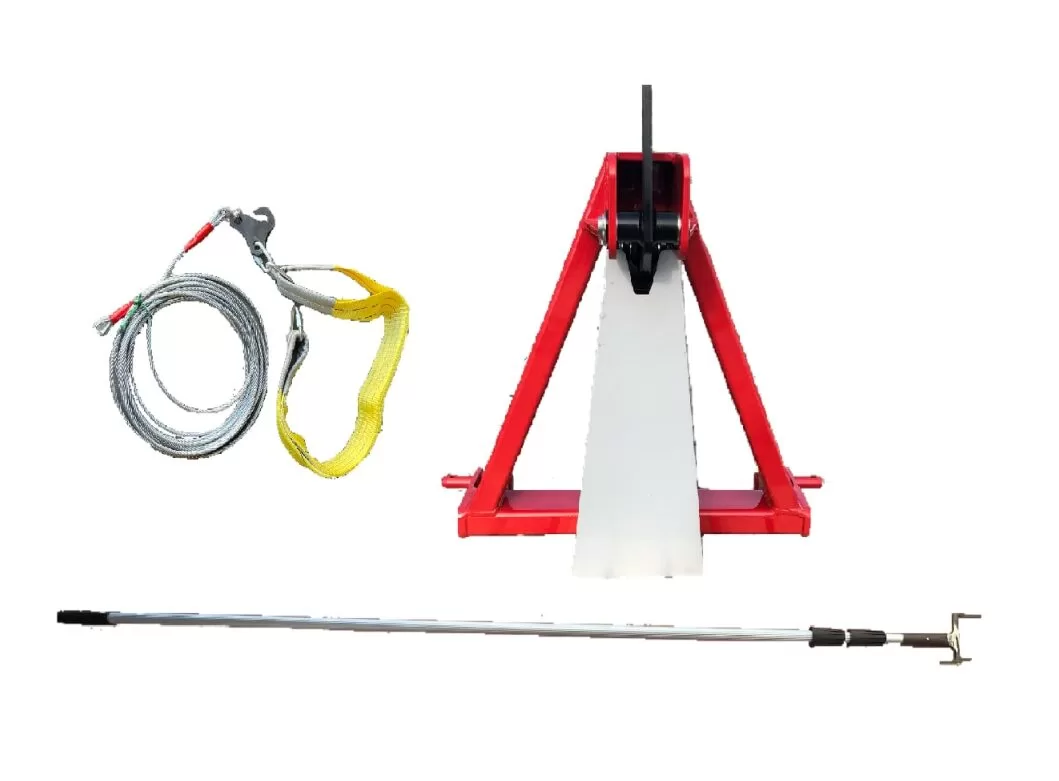

- It is equipped with a steel rope 10 m long and 8 mm in diameter, which is attached to a branch or trunk of a shaken tree. Other rope lengths are also available upon request.
- The cable tree shaker has an option to use a telescopic pole with a length of up to 6 m, which greatly facilitates hooking the rope.
- Easy to use and we recommend 200 rpm for the rotation speed from PTO shaft Operator
- There is no damage to trees
- The heavy-duty steel body construction makes this machine a great choice for harvesting big trees.
- Save harvesting time: the output from 10 to 25 Trees/Hour depend on the size of the trees.
| Length: | 0.52 m |
| Width: | 0.87 m |
| Height: | 0.84 m |
| Weight: | 80 kg |
| Rotating speed of PTO power: | Recommended 200 rpm |
| PTO PROFILE: | 1.3/8 "PTO profile 6 spline |
| ROPE length: | 10 m (other lengths available on request) |
| Mounting method: | 3-point linkage Category 2 |
| Staff required: | 2 people |
