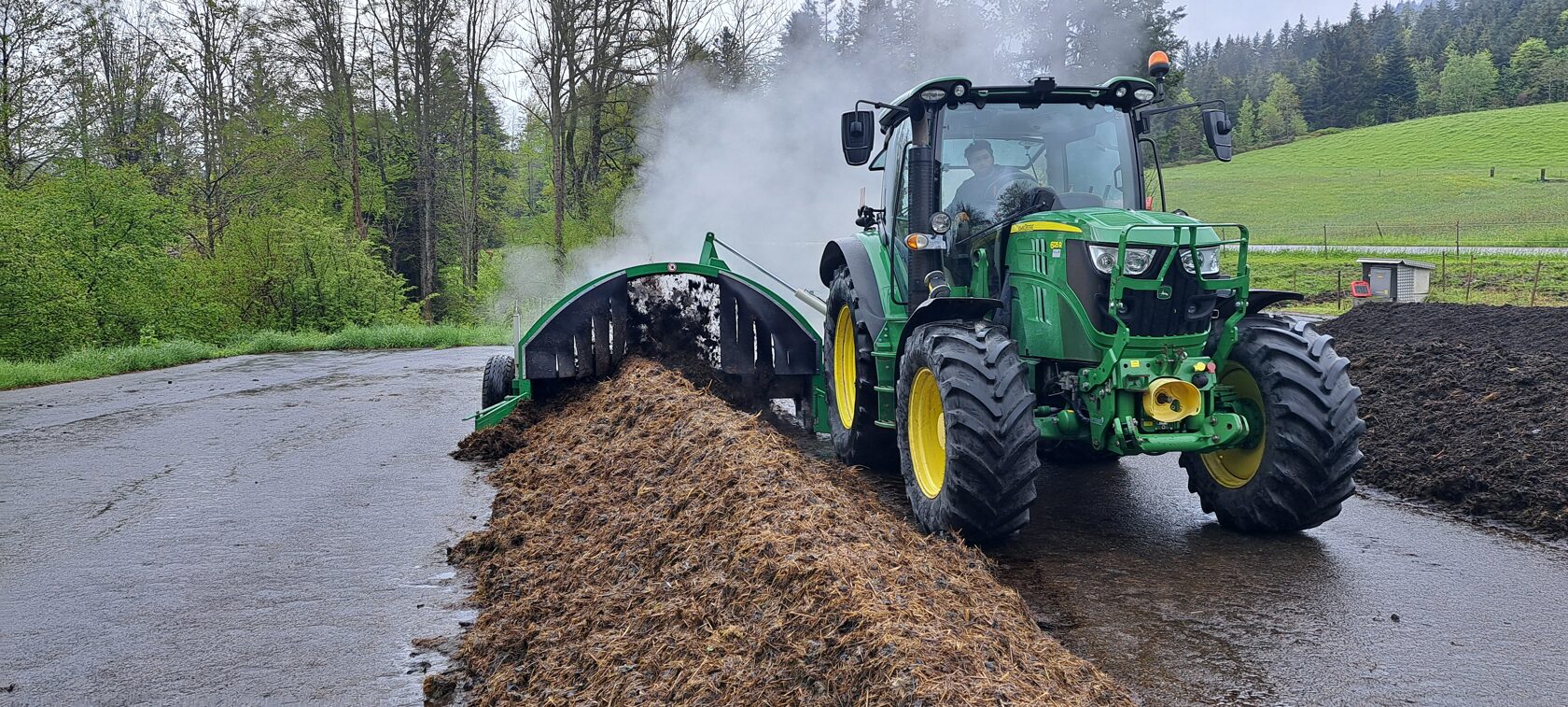

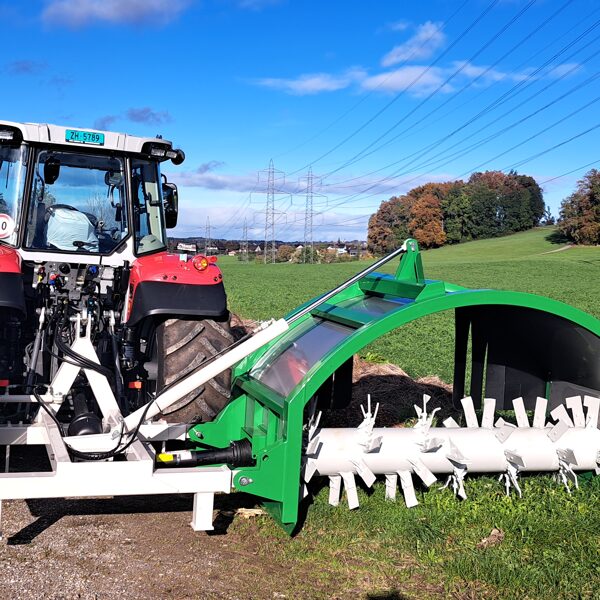

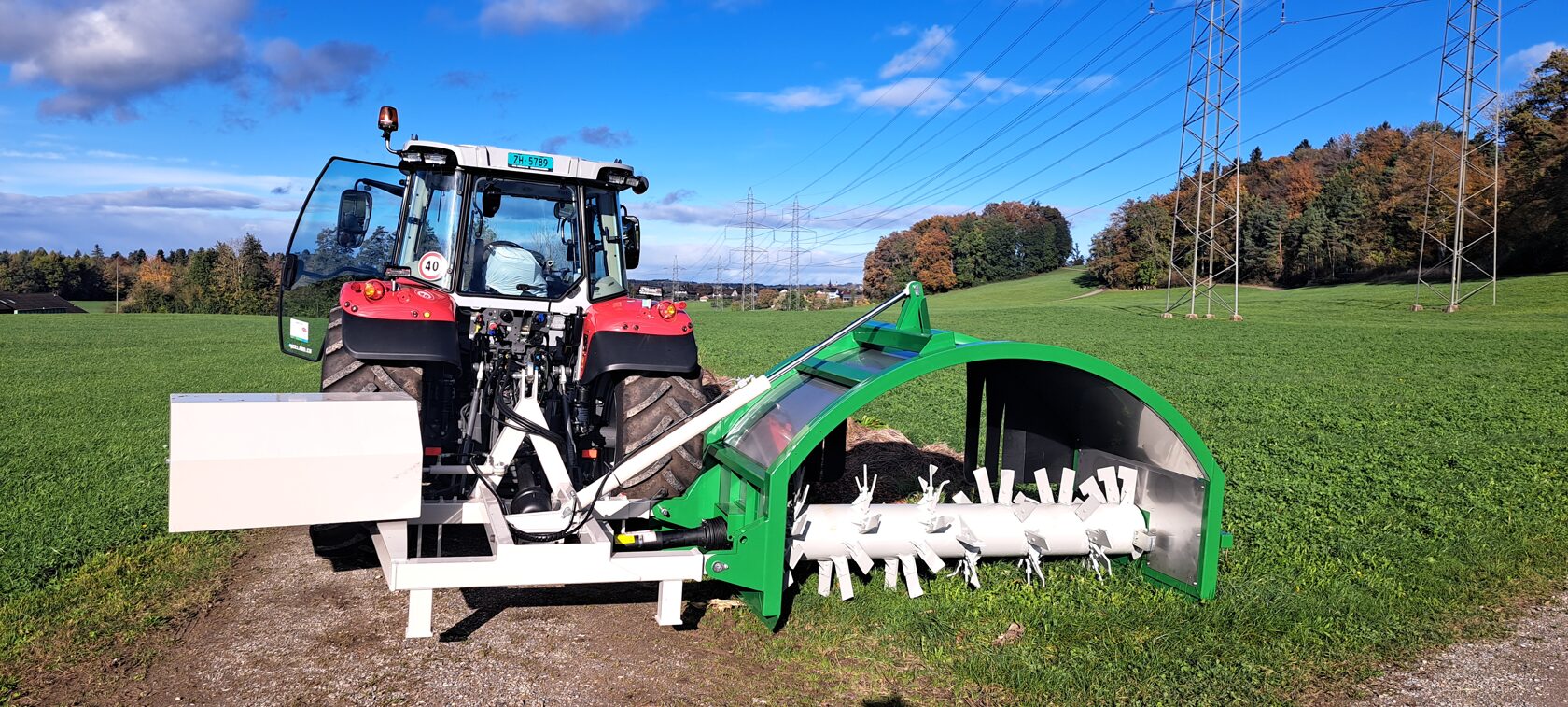

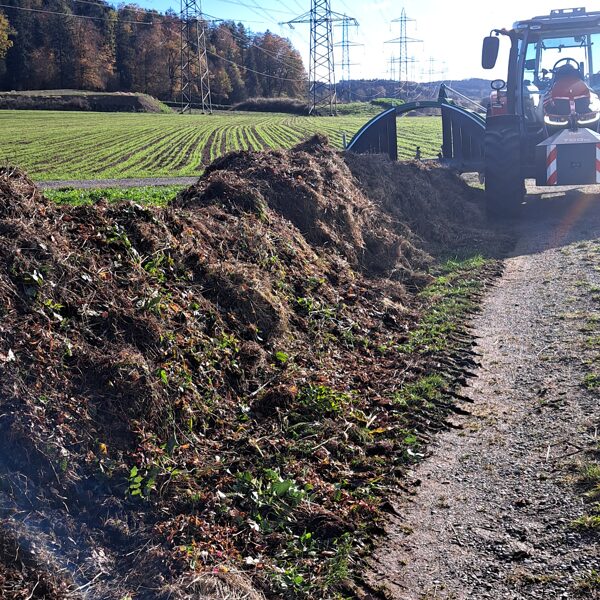

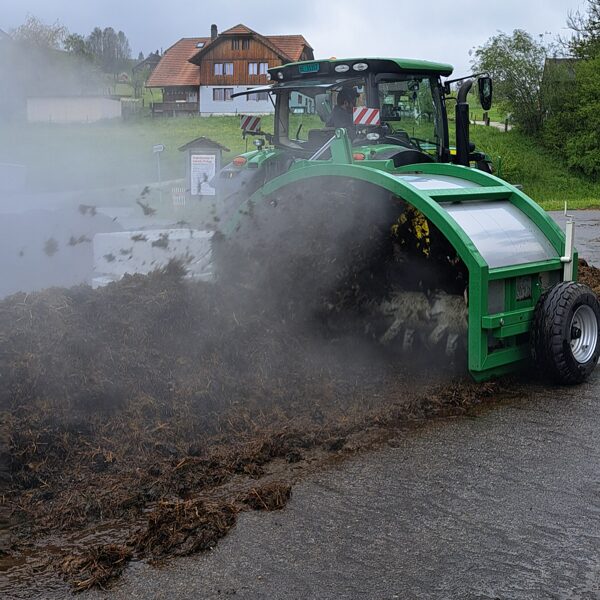

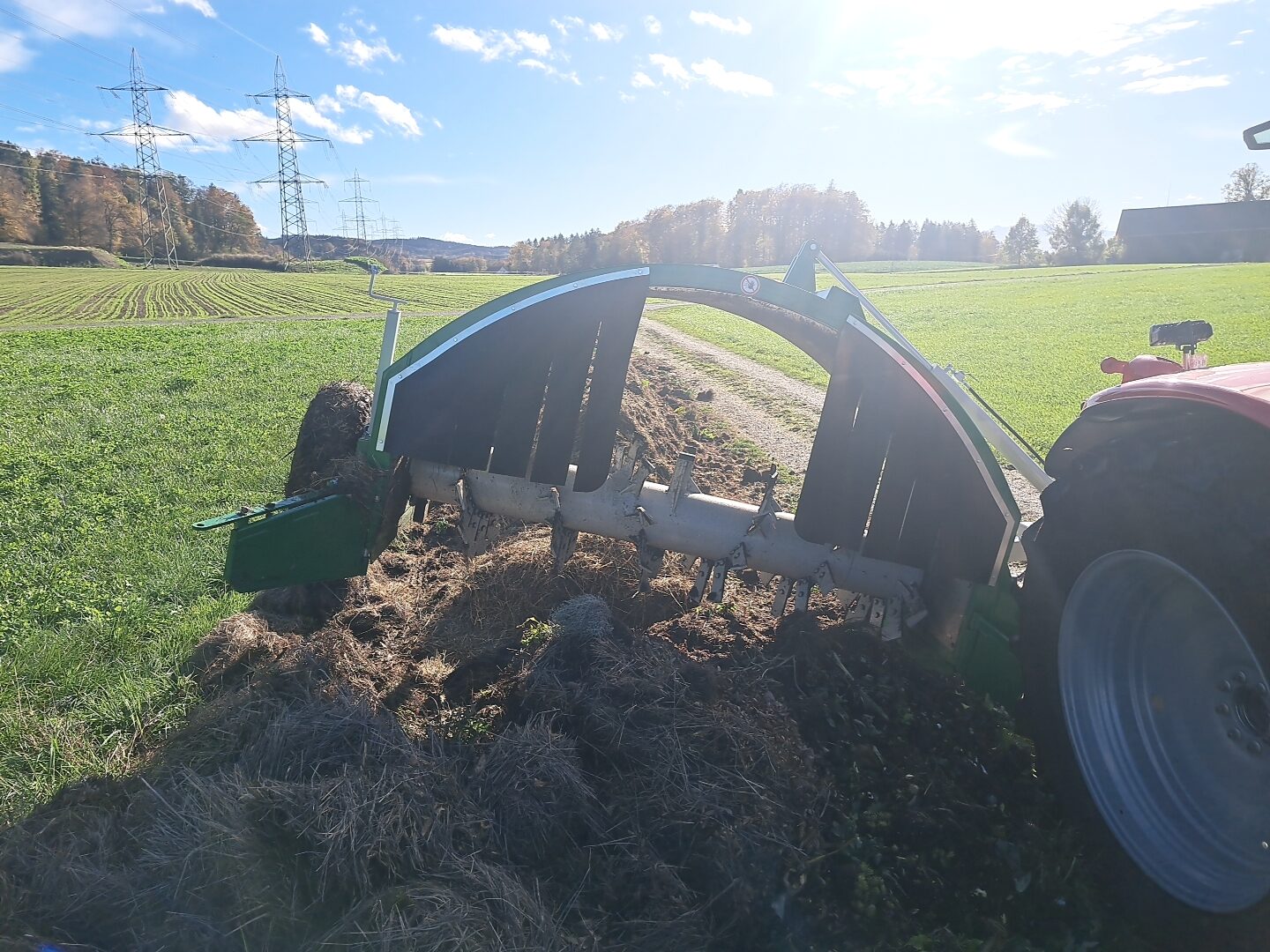

Compost turner Gujer TG 263

Working width: 2.6 meter


Ideal for field edge, small site composting and organic farms with composting up to 6,000 tons per year.

  • Conversion capacity up to 700 m³/h.
  • Small machine; the TG 263 is only 2 m long.
  • Weight: 2200 kg
  • Low maintenance costs, simplest maintenance.
  • Easy handling, simple operation.

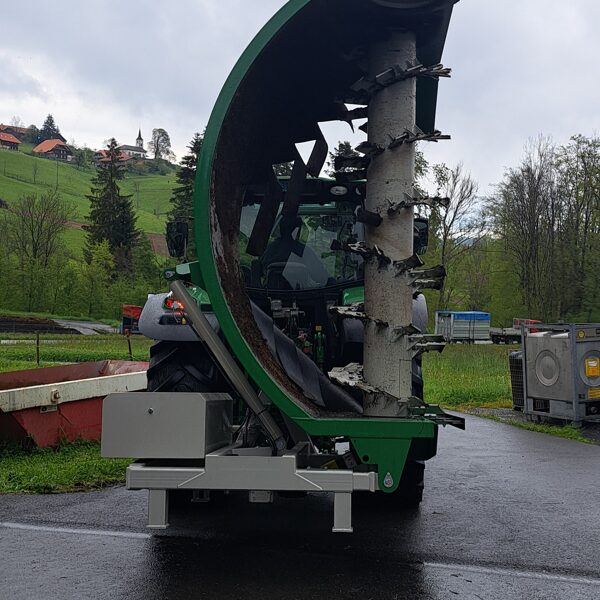

  • The massive arch construction of the tunnel made of 6 mm steel achieves a very great stability, has no weak corner points and the Powder coating prevents corrosion.
  • All wear plates are made of chrome steel.

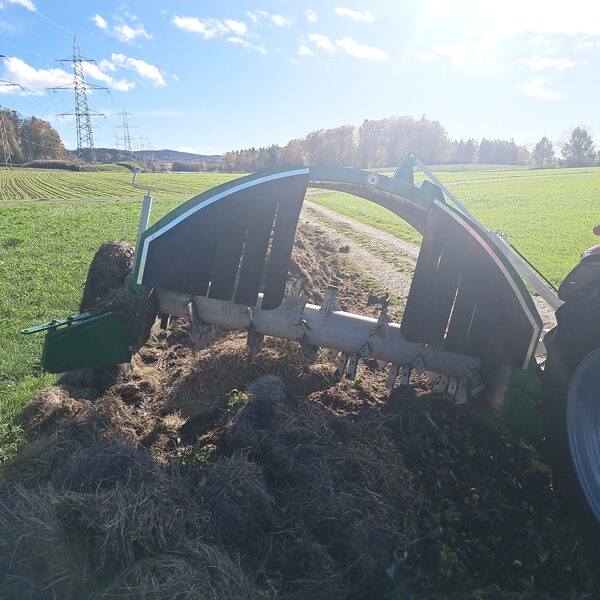

  • Robust, balanced transfer shaft that properly transfers the material to be composted (from the inside to the outside).
  • Fast aerobic composting; within 8 - 12 weeks, depending on the material.
  • Large wide tires and thus little ground pressure.
  • Thanks to swiveling side weight; protection of field and field paths and optimal weight distribution.
  • This reduces the total weight of the machine up to 1,500 kg.

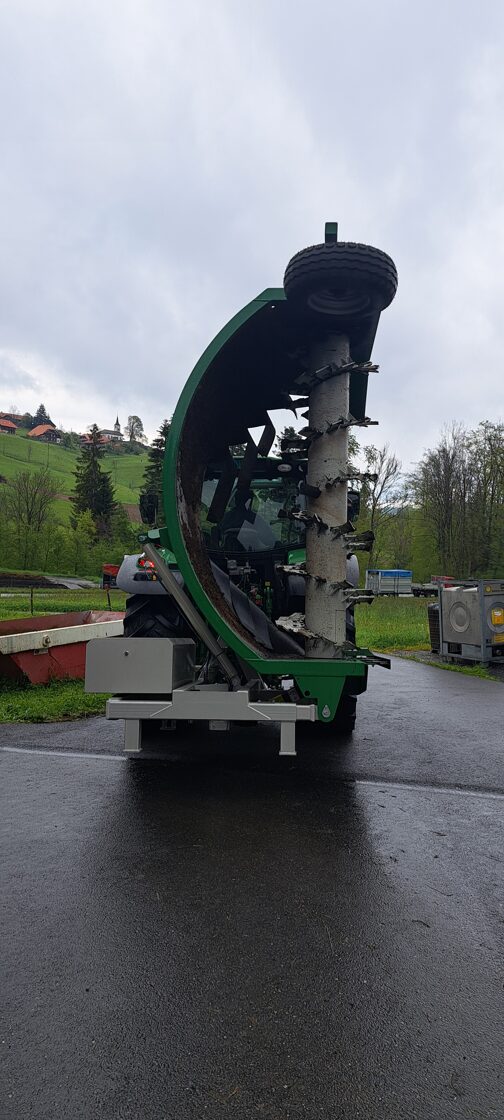

  • Large Support wheel of the transfer tunnel. Swiveling without tools and in seconds. (The road transport with the wheel swung back is possible without any problems).

Basic equipment:

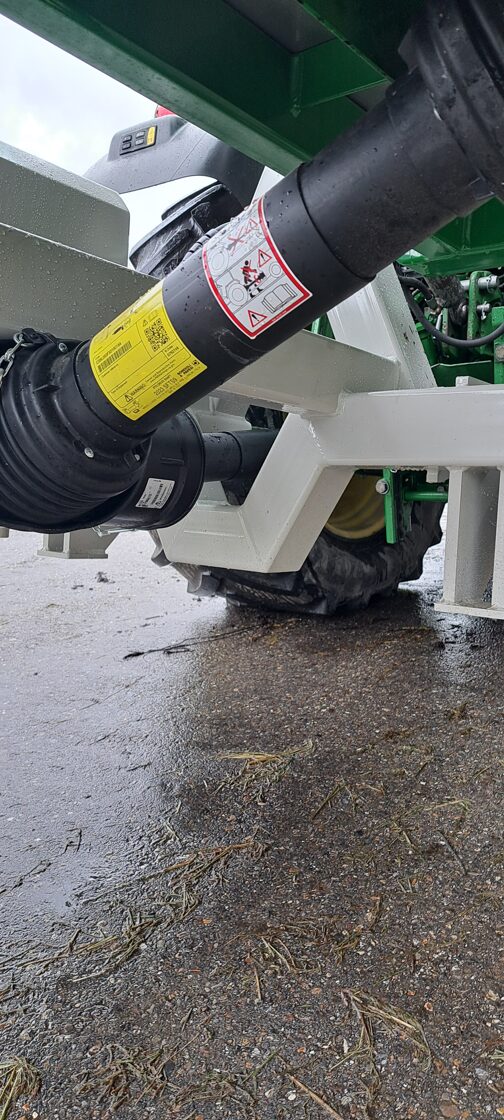

  • Cardan shaft with shear bolt
  • Cardan shaft Gearbox reduction shaft
  • Tunnel with chrome steel plates
  • Direct drive on transfer shaft
  • "Large support wheel on the outside of the tunnel
  • (swivelling, for transport)"
  • Mechanical feed plates
  • side weight

Many options retrofittable such as:

  • Blade right hydraulic
  • Hydraulic side offset
  • Irrigation pipe at front with baffle plate nozzles (7 pcs.)
  • 3rd support foot (for suspending in working position)
  • LED lighting
  • Water connection at the rear
  • Tile guide front and rear
  • Stone protection rubber on the right
  • Water pump 180 litres
  • Water pump 280 litres

Your advantage

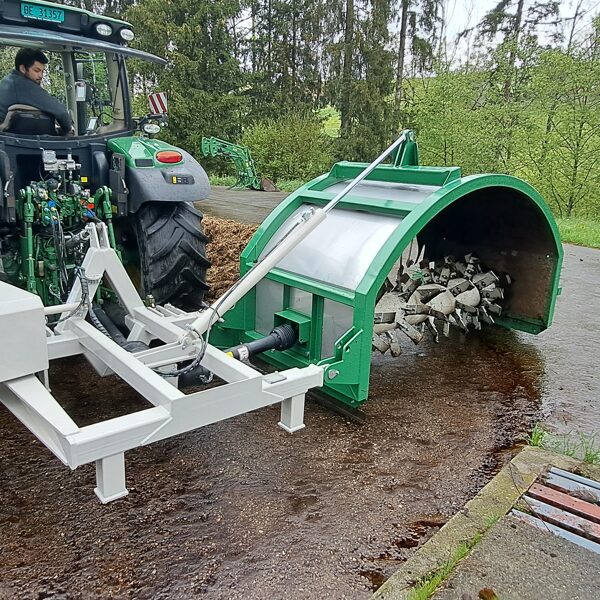

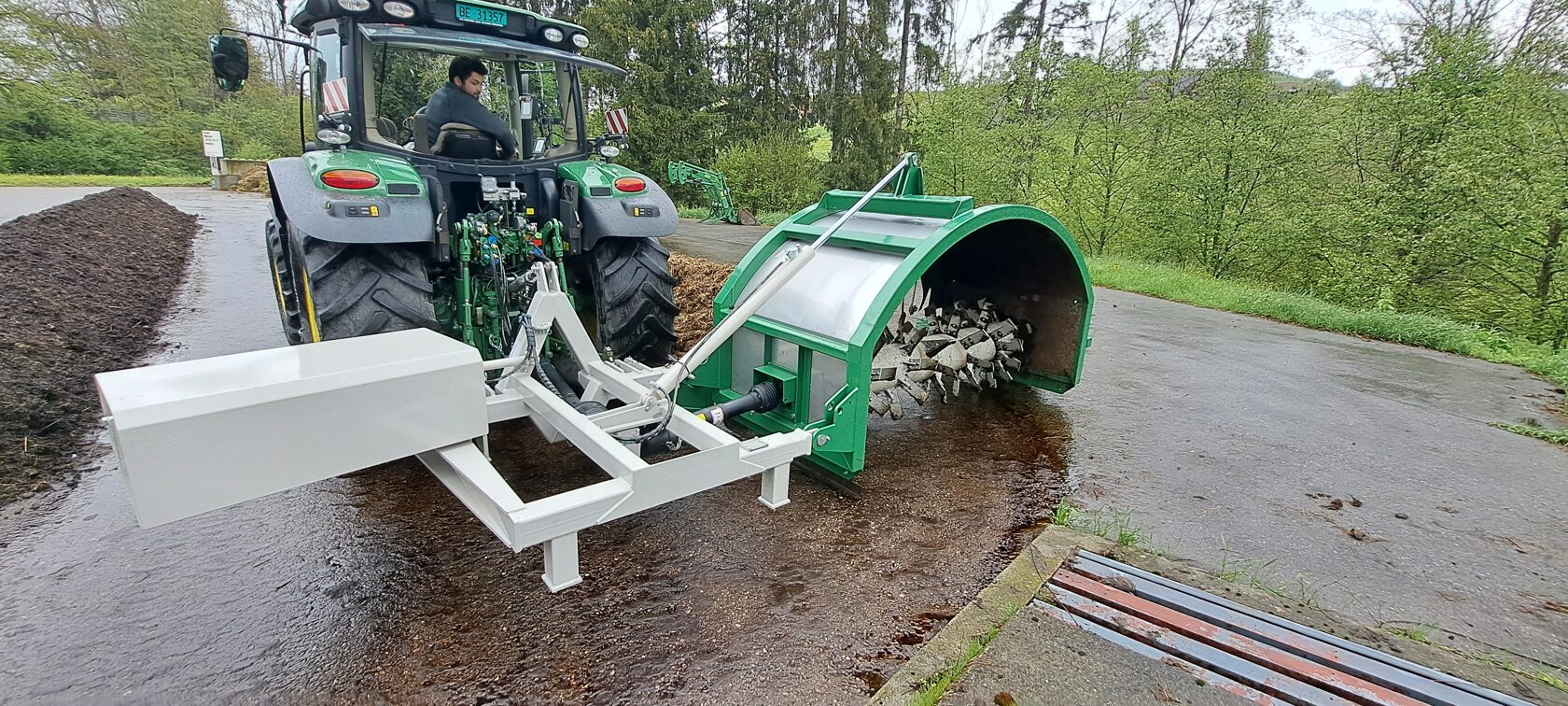

A great advantage of this machine is its compact length (< 2m). The total weight is reduced to 2.2 t.. The 3-point beam fits both tunnel models 2.6m & 3m. Weight: 2200 kg

Prerequisite for the tractor

  • 3-point TG 263 is suitable for tractors from 110 hp and min. 3 tonnes payload
