TEKLA for Berry Bushes

Herbicide Strip Sprayer for Berry Bushes.
Weed Control Under berry bushes

Herbicide strip sprayer for berry bushes TEKLA is designed to reach the weeds growing under berry bushes in the plantations of blackcurrants, redcurrants, gooseberries, aronia berries, haskap berries, rosehips bushes, and others in non-organic farming as well as along fences.

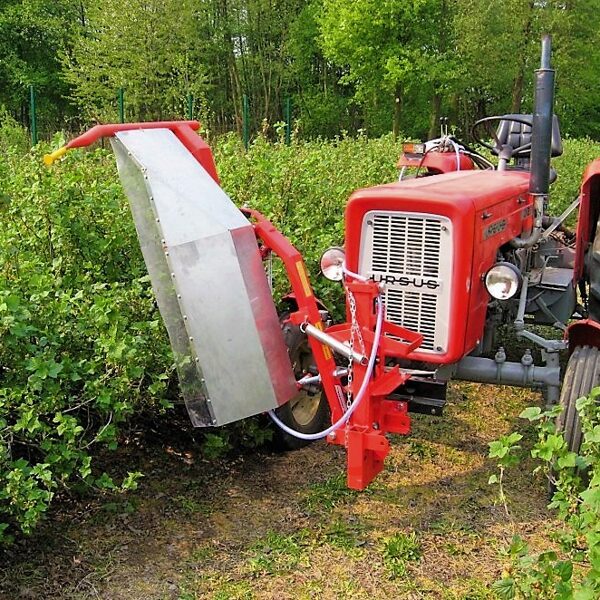

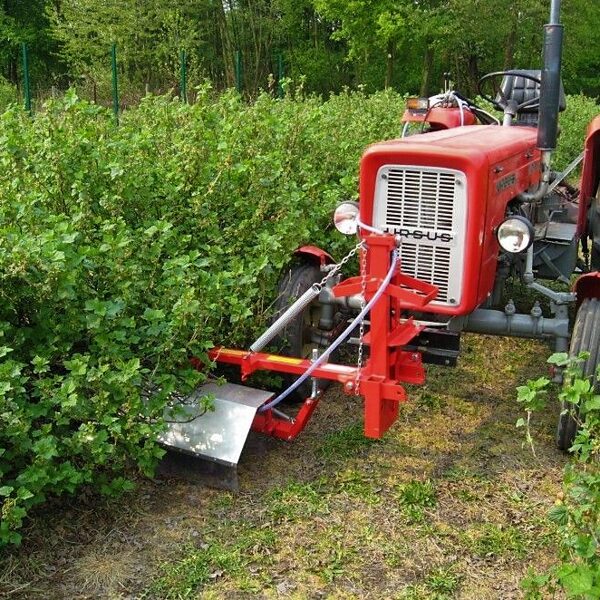

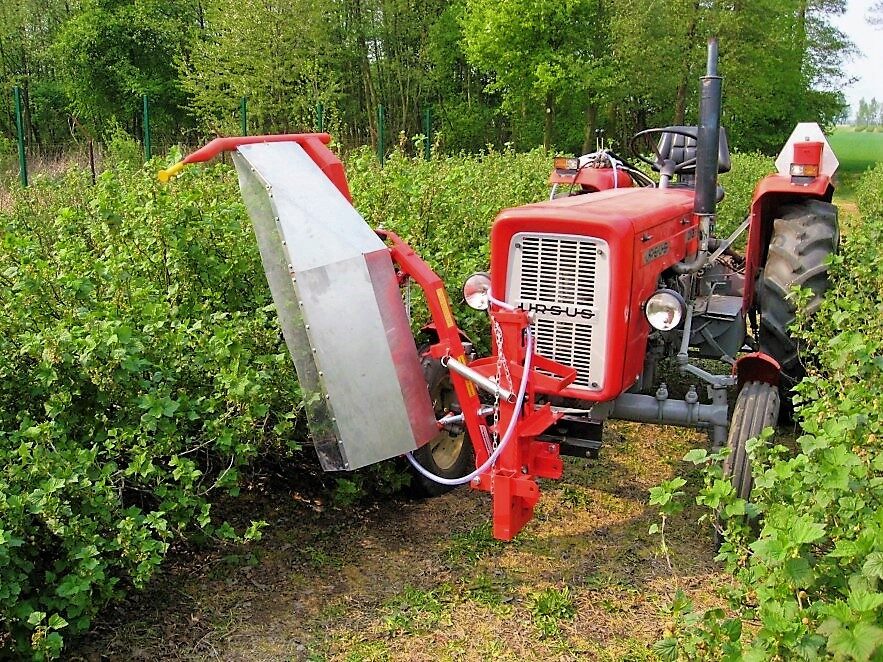

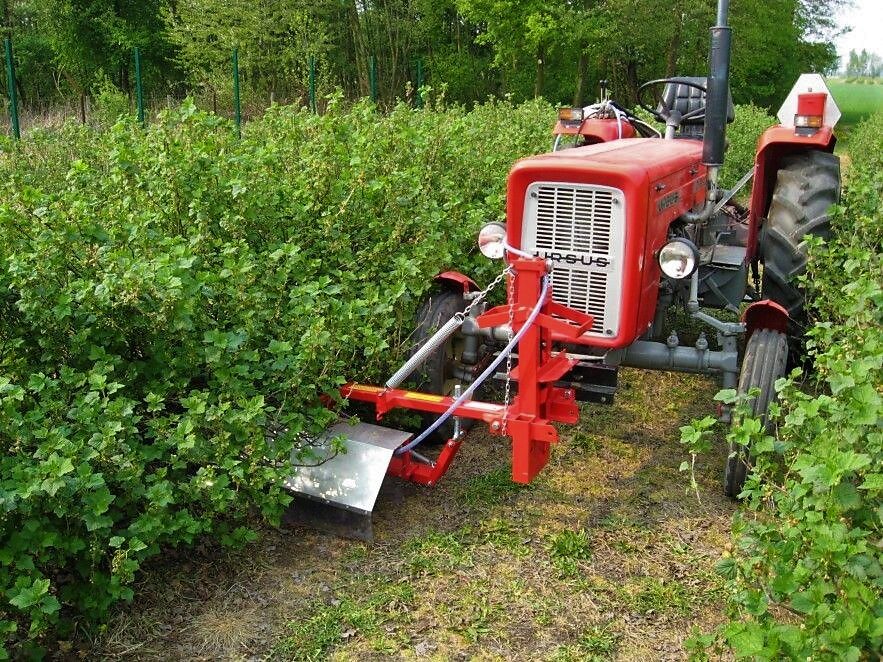

The herbicide strip sprayer for berries TEKLA is mounted to the front of the tractor with the customized bracket used in the berry trimmer FORMER in case there’s no 3-point linkage and this service we offer it free-of-charge to all our clients.
Single-sided or double-sided version
Hydraulic adjustable width
Hydraulic lifting/lowering of the machine
A special design of the sprayer modules enables spraying as close to a bush or tree as possible
the use of protective curtains and ejector nozzles protects against spraying tree branches and shrubs
The tilting structure of the working part of the device allows for more precise application of the liquid in the working area, preventing spraying of the undesirable area and damaging the device
Herbicide strip sprayer TEKLA has an exclusive feature, the double-sided are mounted in a suitably shaped cover made of stainless steel. The symmetrical herbicide strip sprayer is equipped with a shut-off valve. The front and back covers are extended by a flexible apron up to the ground. The operative part of the boom is attached pivotally to the carrier part and is pressed again. the base of the bush by a spring. A second spring lightens the whole working unit. The back partition of the cover is transparent, allowing visual inspection of the work of the sprayers.

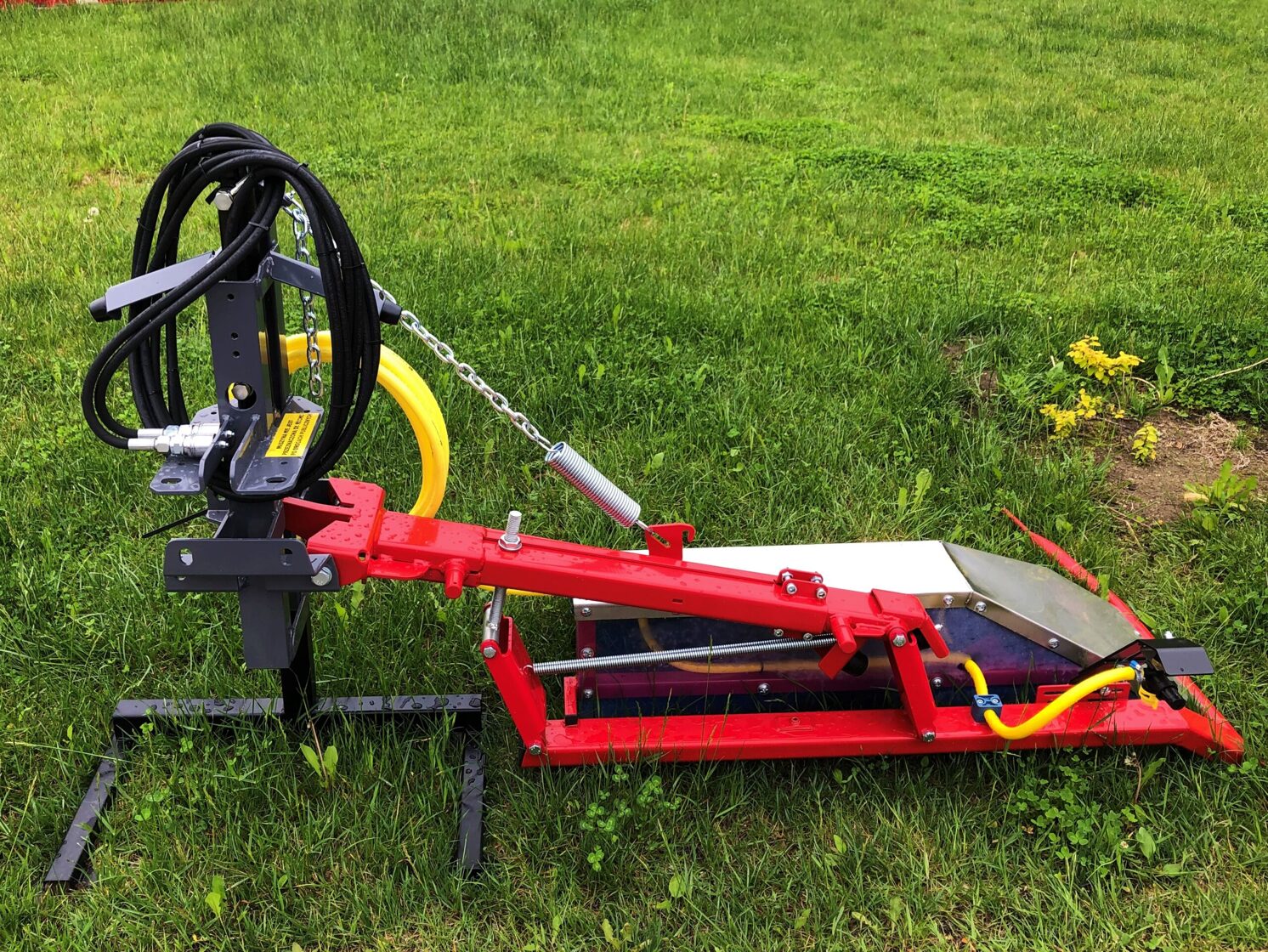

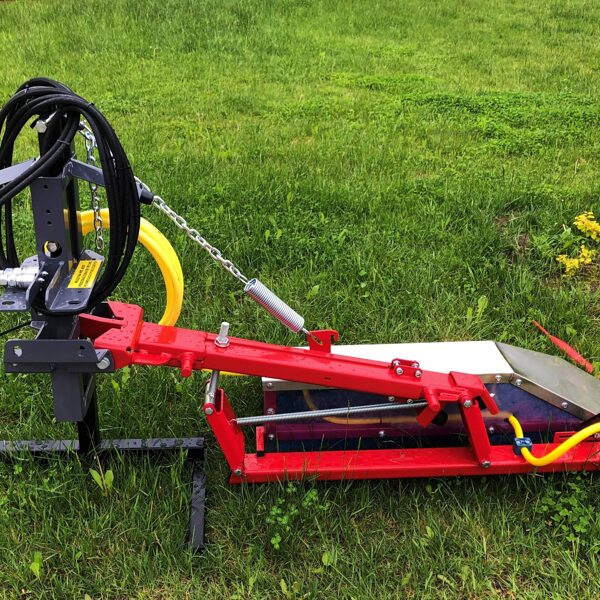

Equipped with storage and transport stand.

TEKLA sprayer versions:
TEKLA - basic version, single-sided, sprayer directed to the right or left side, adjustable working width within 1.6 - 2.0 m.

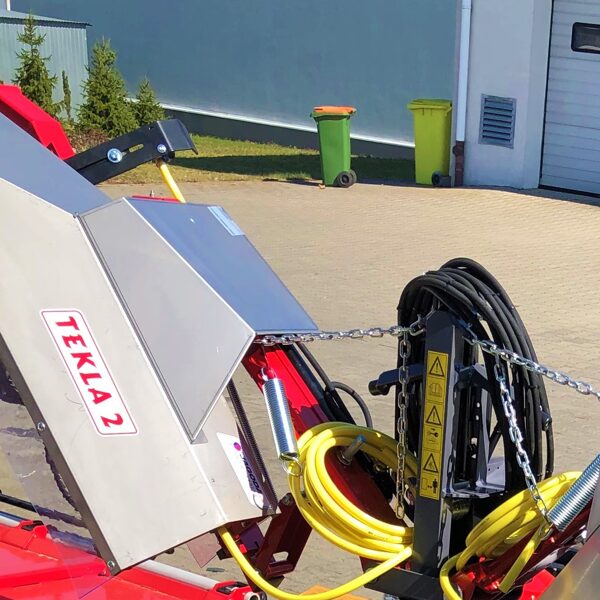

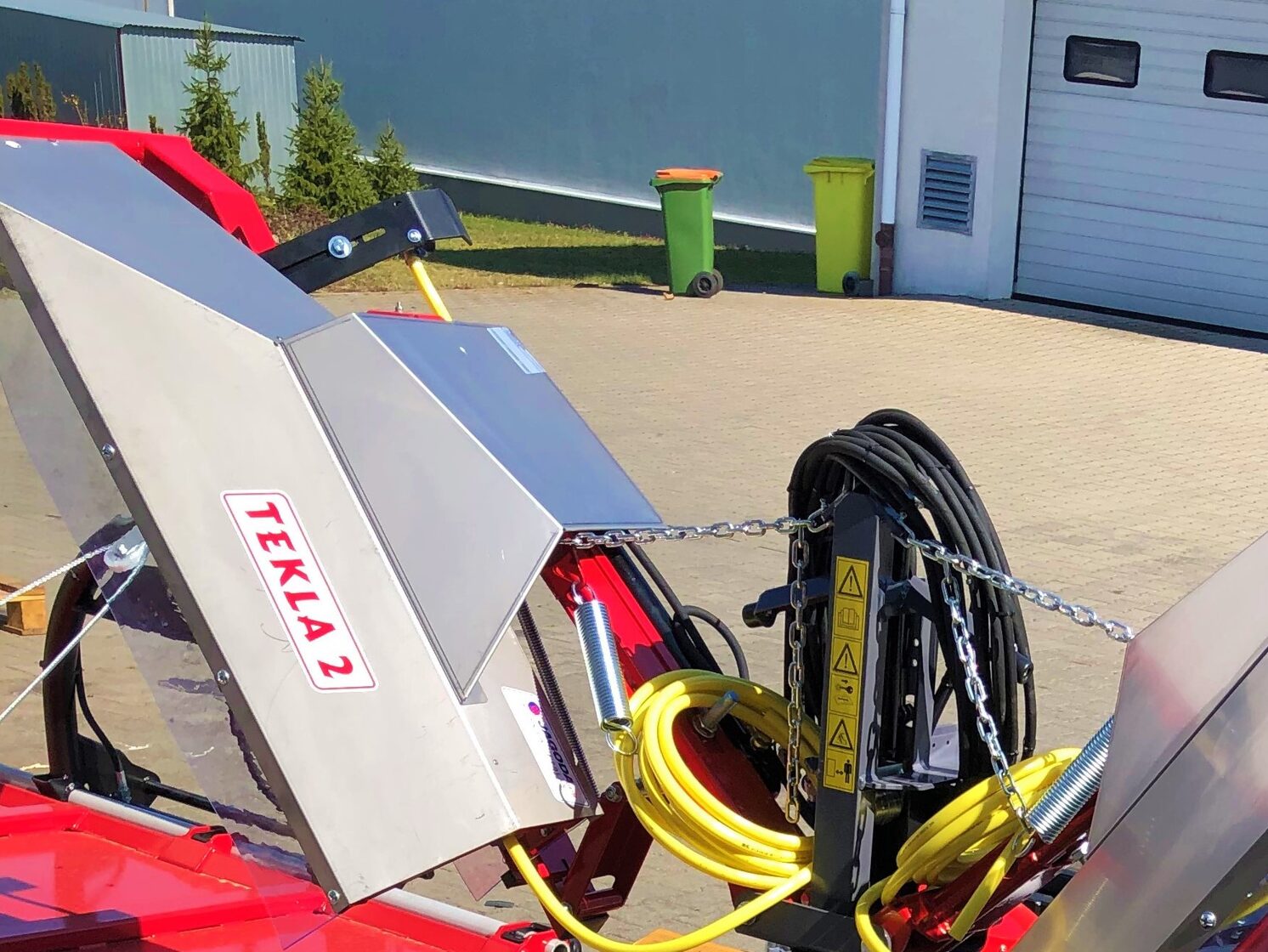

TEKLA 2 - double-sided standard version, adjustable working width in the range of 3.2 - 4.0 m.
TEKLA 2W - double-sided version, narrow, adjustable working width in the range of 2.8 - 3.44 m.

Technical parameters of the TEKLA sprayer:

Version:	TEKLA 1	TEKLA 2	TEKLA 2W
Length (without bracket, m):	1.05	1.05	1.05
Width (m):	1.6-2	3.2-4	2.8-3.44
Height (m):	1.15	1.15	1.15
Weight (kg):	75kg	125kg	120kg
Productivity (ha/h):	0.5-1	1-2	1-2
Working speed (km/h):	Up to 10	Up to 10	Up to 10
Spraying width (m):	1.14	1.14	1.14
Spraying pressure (bar):	2-4 bar	2-4 bar	2-4 bar
Tractor equipment:	Relevant tractor bracket	Relevant tractor bracket	Relevant tractor bracket
