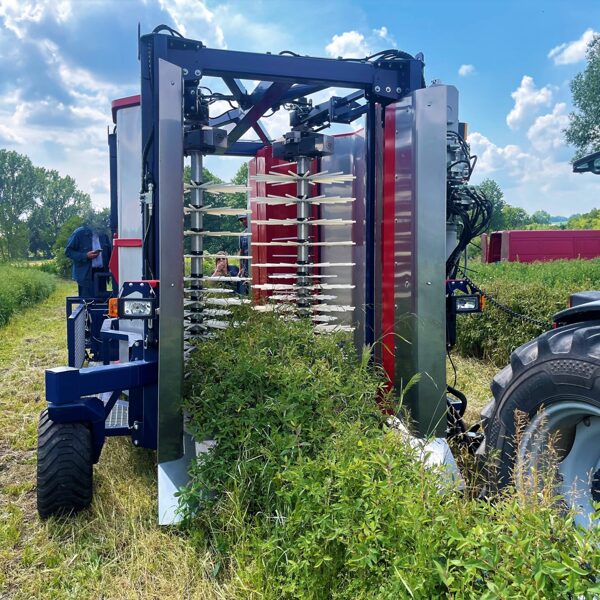

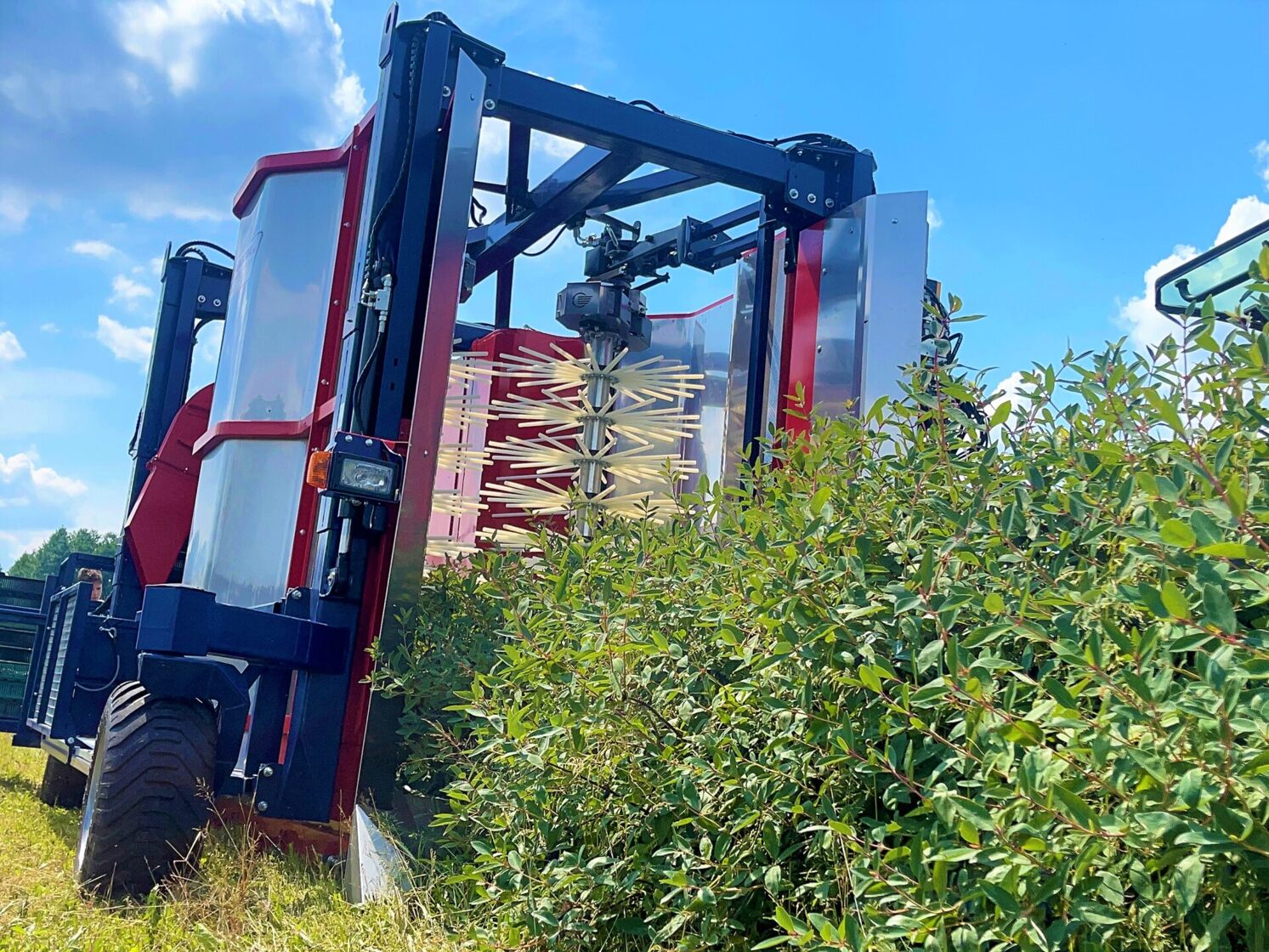

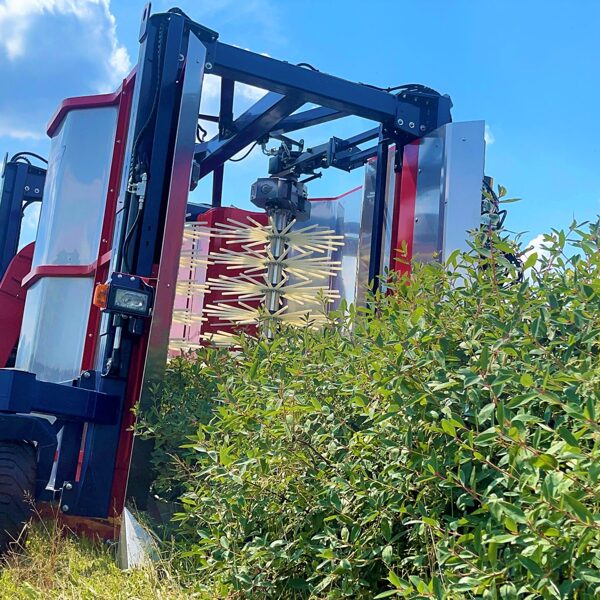

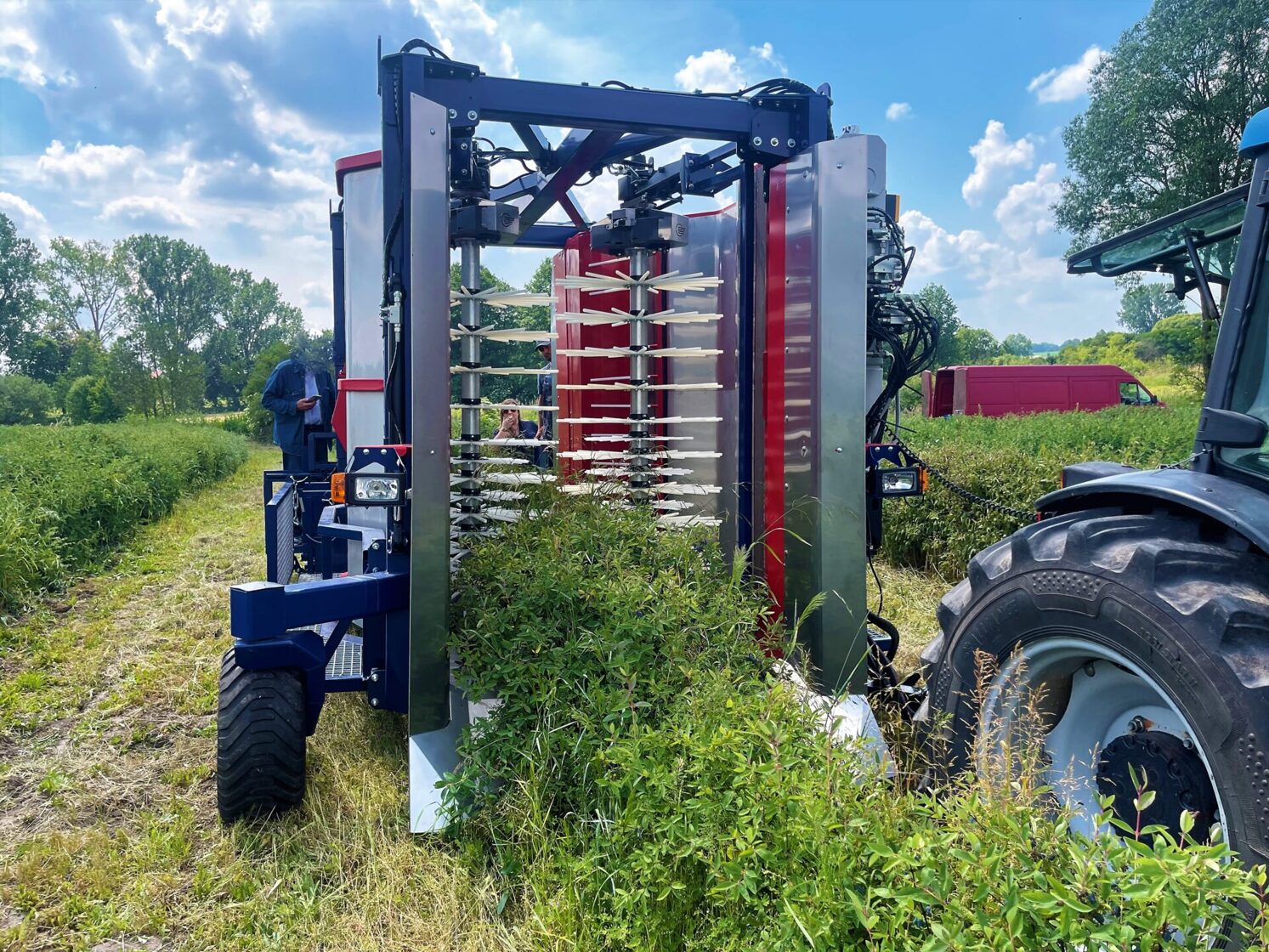

Trailed Blueberry Harvester – JAG 300

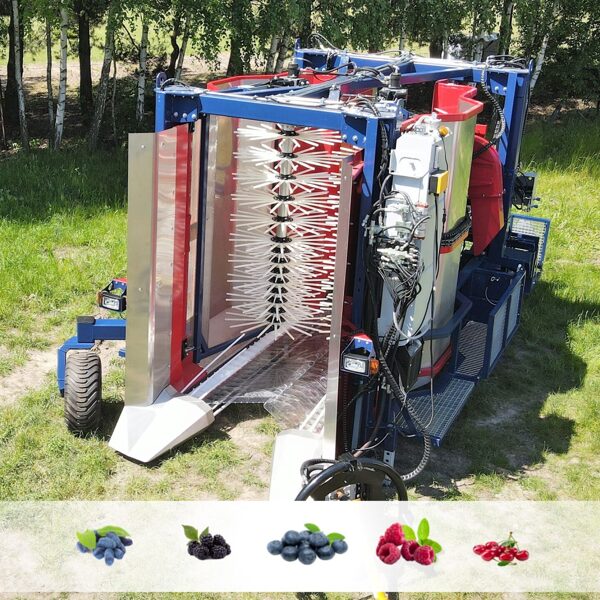

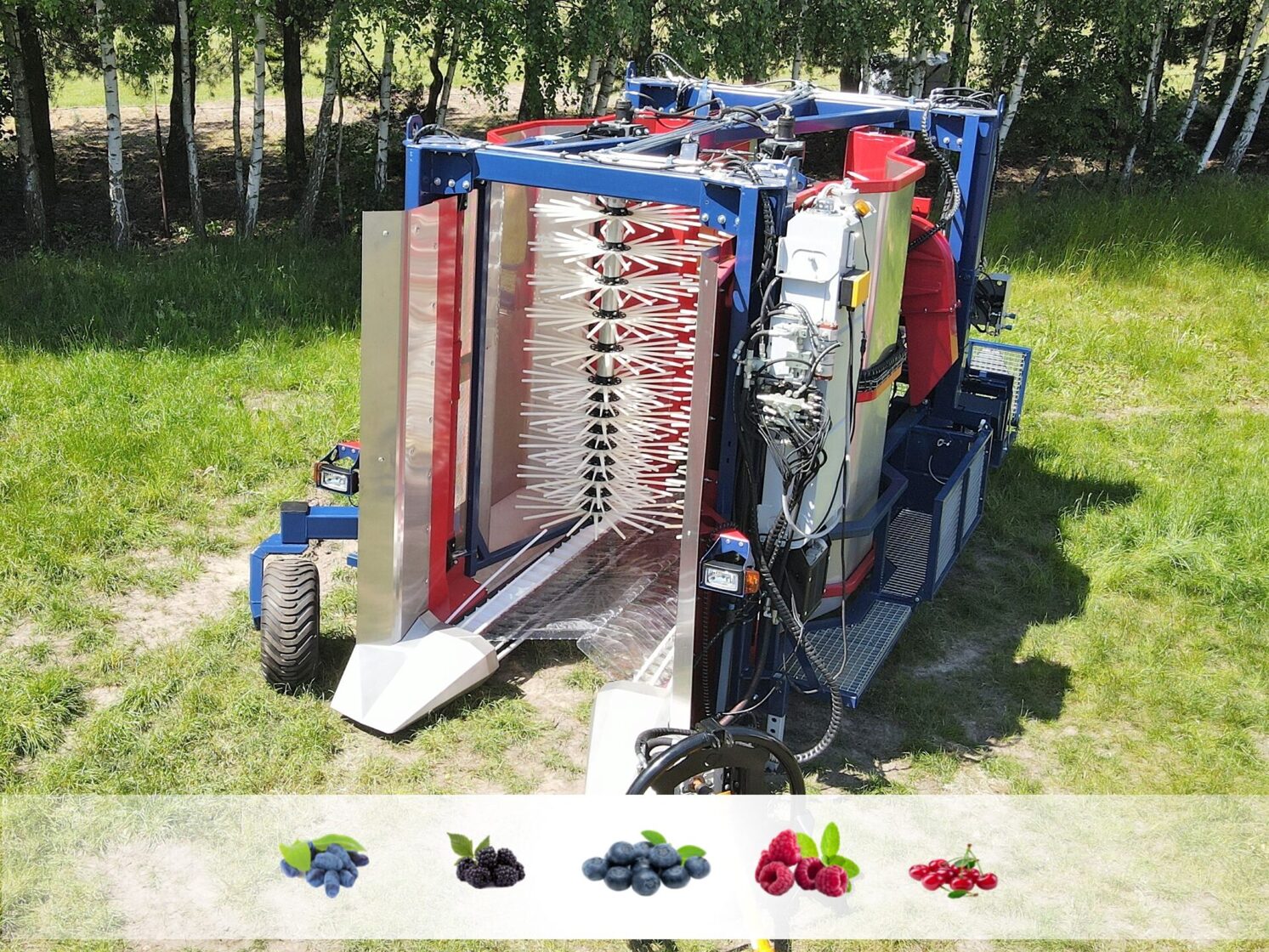

The JAGODA 300, an over-the-row trailed blueberry harvester that has been designed to efficiently collect berries from plantations prepared for mechanical harvesting, Elevates your blueberry harvesting experience. Not just for blueberries, it’s a multi-crop harvester, conquering raspberries, haskap berries, blackberries, currants, aronia berries, and more. Even young sour cherries, plums, and almonds fall under its gentle harvest touch.

Parametrs:

  • Optimizing harvesting time: at speeds ranging from 0.5 km/h to 2 km/h
  • Output harvest: 0.25 ha/h to 0.5 ha/h
  • Number of rotor picking heads: 2
  • Tractor capacity: Min 70 HP
  • Knowing that 90% to 98% of your berries reach your collection bins in pristine condition.

Plantation requirements:

  • Distance between Rows: min. 2,5 m ( depend on tractor size )
  • Harvesting carried out: On flat or raised beds
  • The height of the harvester can be regulated and the lowest position of the catcher plates is at 33 cm above the ground.
  • Adaptability for Various Environments: Suitable for open field harvesting, poles and trellis systems, and plantations in pots.
  • The crown has to be crown has to be to minimize the loss of the fruit. Wide crowns increase the loss when the catcher plates open around the bush.
  • The distance required at the end of the rows: min 6 m – 8 m.

Highest workmanship standard – The blueberry harvester is fully equipped:

  • Hydraulic Adjustable Picking Tunnel: The picking tunnel can be easily adjusted hydraulically to accommodate different plantation conditions, providing a picking height ranging from 2930 mm to 3560 mm.
  • Efficient Maneuverability with Steering Wheels: the harvester allows for a smaller turning radius, making manoeuvring on tight U-turns effortless
  • Blueberries for fresh market after sorting, other berries for IQF with minimal greens fruit.
  • The harvester is equipped with a hydraulic platform for convenient fruit collection in both transport and working positions.
  • Wireless control for steering wheels and harvester height adjustment.
  • Drive and Working Light: Integrated drive and working lights ensure optimal visibility, enabling efficient operation even in low-light conditions.


Design exclusivity : Reforming Blueberry Harvesting

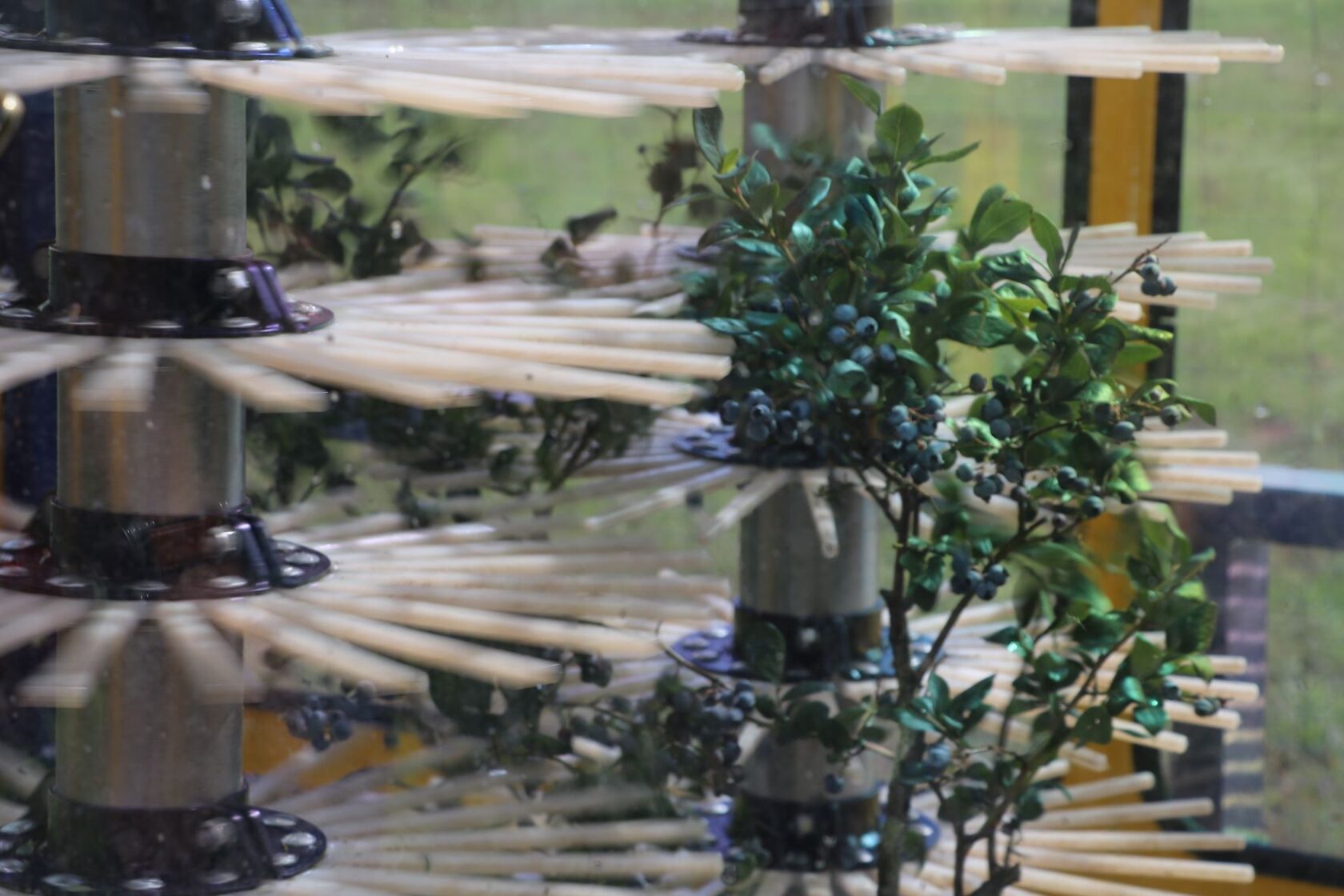

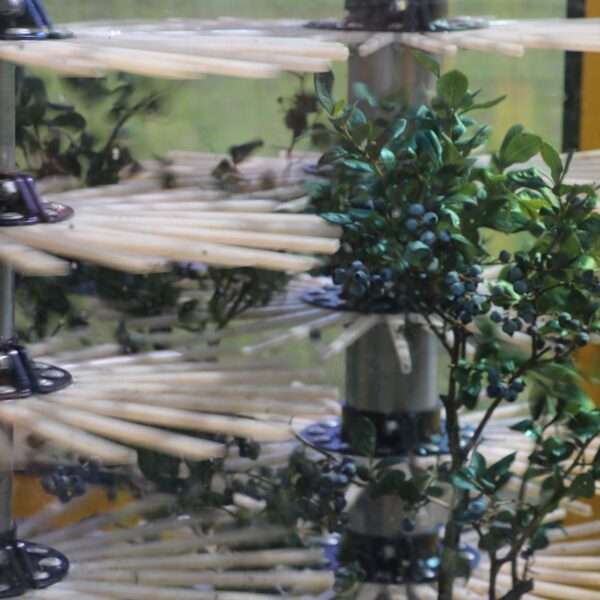

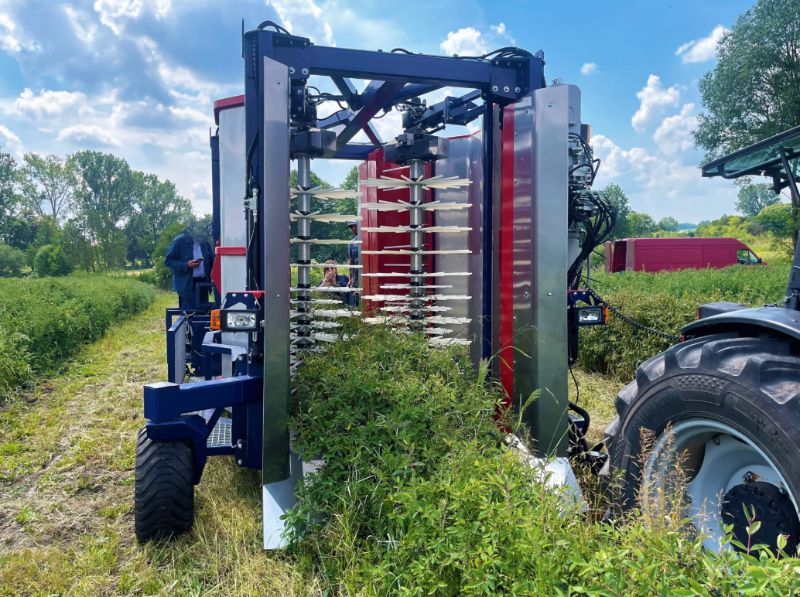

  • Innovative Vertical Shaking System for Damage-Free Post-Harvest Plantations:The JAGODA 300 blueberry harvester features with 2 vertical shakers 920, ensuring efficient yet gentle shaking that is far more considerate to shrubs than conventional shaking heads. The ability to adjust the shaking force by regulating the rotating weight contributes to an impressive harvest rate of over 98% for ripe blueberries.

  • Innovative Catcher Plates Design for Minimal Fruit Loss: Strategically positioned catcher plates around blueberry bushes, with adjustable height and incline settings for adaptability to crown widths, contribute to groundbreaking fruit loss percentages ranging between 2% and 8%.

  • Effective Fruit Cleaning with Dual High-Speed Fans: Two high-speed fans operating at 1000 turns/min ensure the efficient removal of leaves and impurities during the harvesting process.

  • Single-Drop Fruit Delivery System: Protects fruit quality during the harvesting process

  • High Harvest Capacity: Standard deck accommodates up to 20 to 30 fruit boxes on each side with total capacity of around 40 to 60 boxes. More space available for 50 empty boxes.


Technical specifications:

  Mounting method to tractor   2 hitch-point linkage Category 2
  Shaking fruits Head   2  (920)
  Tractor Capacity   Min. 70 HP
  Number of harvested row  1
  Impurities %   < 1%
  Harvest Accuracy   From 90% Up to 95%
  The drive of working units   Hydraulic pump through the transmission PTO
  Drive   Internal hydraulics system of the harvester
  Dual Fan Speed Regulation   0-1200 rpm
  Staff Required   Tractor Operator + 2
  Height from ground to C. plates   Min. 330 mm
  Front Width Tunnel  1470
  Rear Width Tunnel   900 mm
  Max tunnel width  2250 mm
  Transport – working  Length   6 200 mm –  7 150 mm
  Height – Adjustable   2930 mm – 3560 mm
  Transport – working  Width   3 000 mm – 3 650 mm
  Width of catcher plates   1100 mm
  Width of conveyor fruits  180 mm
  Collecting fruits Platform   Foldable Hydraulic Rear platfrom
  Net Weight   3 700 Kg
