Inter-Row Rotary Cultivator LUCY

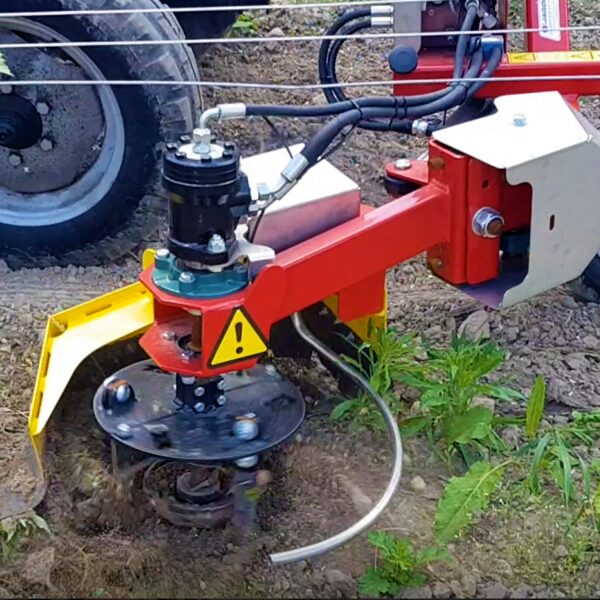

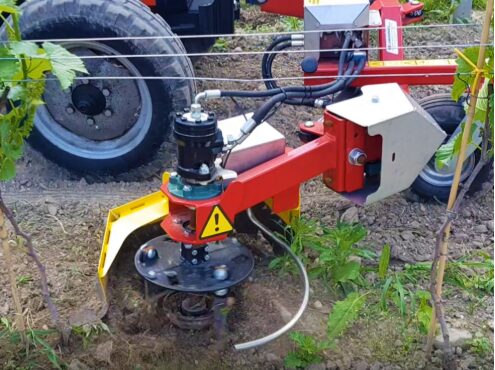

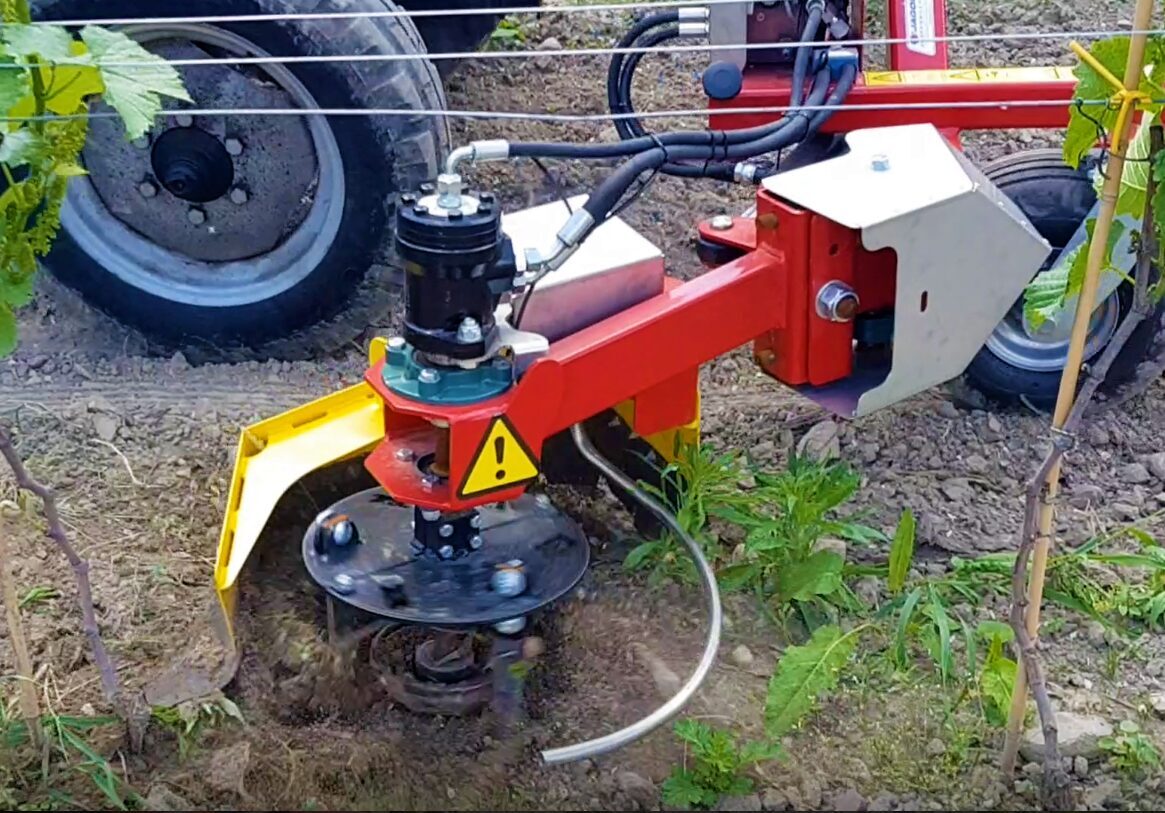

LUCY is an innovative in-row rotary weeder designed to control weed in orchards, vineyards, and berry bushes. This eco-friendly machine offers numerous benefits, making it a compelling choice for farmers seeking both increased efficiency and environmental responsibility.

  • Replaces the use of herbicides: the JAGODA LUCY weeder allows you to significantly reduce or even eliminate the use of herbicides in commercial gardens and is particularly suitable for organic farms.

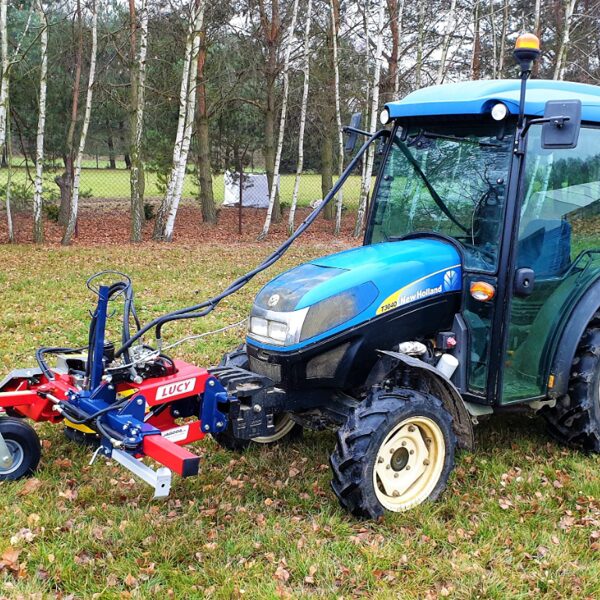

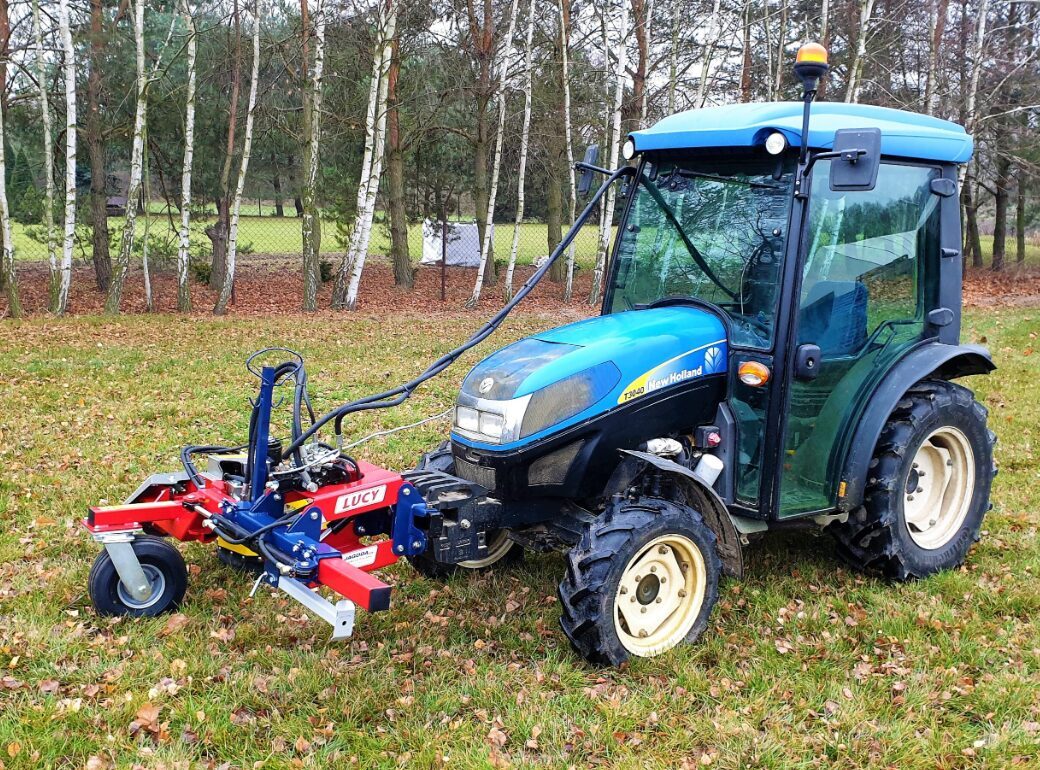

  • The orchard rotary cultivator LUCY is controlled by means of a wireless control console located in the tractor cab. Regulating the sensor for high or low sensitivity for high precision weeding: The sensor regulation permits to avoidance of any risk of plant damage.

  • Innovative solution for weed control between rows and between plants: The weeder Lucy is adjustable and can be adapted to crops with different row widths and plant spacing. Depending on the conditions of the commercial garden, the size of the weeds or the hardness of the soil, the LUCY weeder can be equipped with different types of tines and rotors of different diameters.

Rotating part variations:


 Standard rotor with
standard tines, diameter - 0.3 m
 Standard rotor with thicker
 tines, diameter - 0.3 m
Standard rotor with knives,
diameter - 0.3 m
  Small rotor with knives,
diameter - 0.225m


Inter-row weeder LUCY is produced in 2 Versions:

Technical specs:

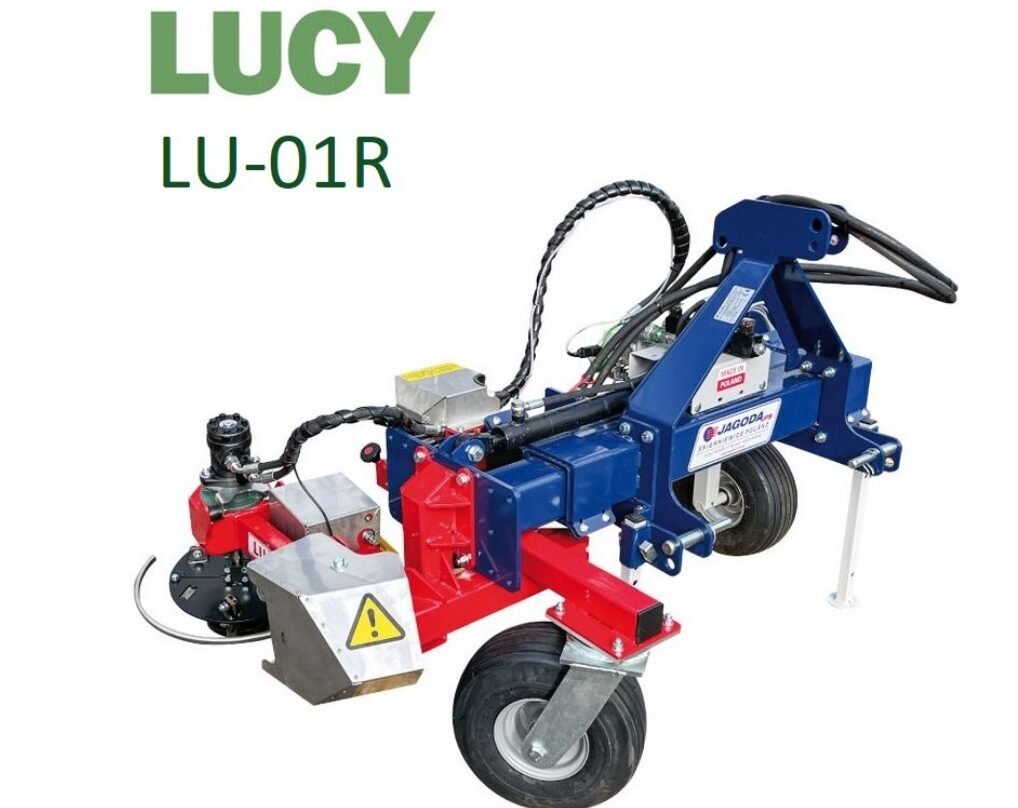

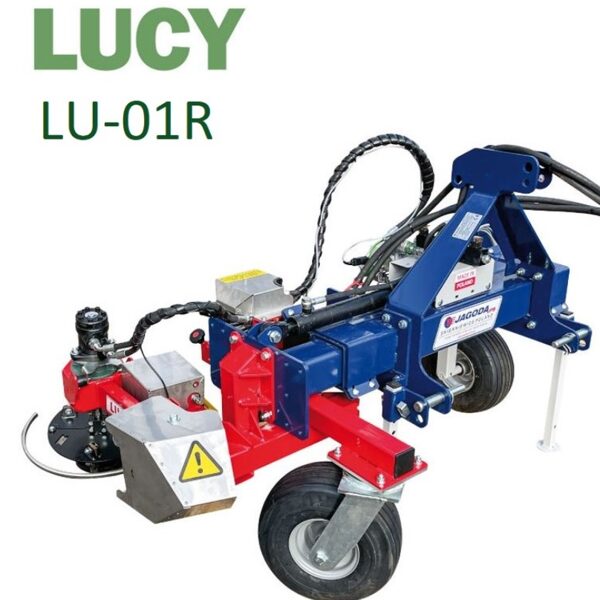

  Version   1 Sided LU-01F 1 Sided LU-01R
  Mounting method to tractor   3-point Linkage- CAT 2 or special bracket (Front)   3-point Linkage- CAT 2 (Rear)
  Max Working Width   2.02 m   2.01 m
  Min Working Width   2.02 m   1.61 m
  Shipment Width   2. 02 m   1.61 m
  Length   1.18 m   1.21 m
  Height   1.16 m  1.06 m
  Weeding Depth   10-40 mm   10-40 mm
  Weeding Head Size   300 mm   300 mm
  Working Speed   1 – 3 km/h   1 – 3 km/h
  Oil Requirement (l/min)   30 l/min or External PTO   30 l/min
  Weight   180 kg   220 kg
