 Technical data TG 233 - Conversion capacity up to 400 m³/h
- Transfer shaft width 2.3 m
- Overall width in transport position open
- Working width up to 2.5 m
- Total length in transport position 3.1 m
- Internal tunnel height 1.35 m
- Working speed, ideal max. 300 m/h
- Weight approx. 780 kg
- Rental width x height 2.5 x 1.2 m
Basic equipment TG 233 - hydraulic version - Tunnel with chrome steel plates
- Support wheel on the outside of the tunnel
- Mechanical feed plates
Requirements for the compact and telescopic loader - For vehicles with an overall width of up to 2.3 m
- For vehicles from 45 hp
- Working pressure of the hydraulics must reach at least 200 bar, with at least 70 litres of oil per min.
- Ideal accelerator pedal
Options - Water spray bar
- Fleece guides front and rear
- Faster incl. parking bracket
- Widening plates set *

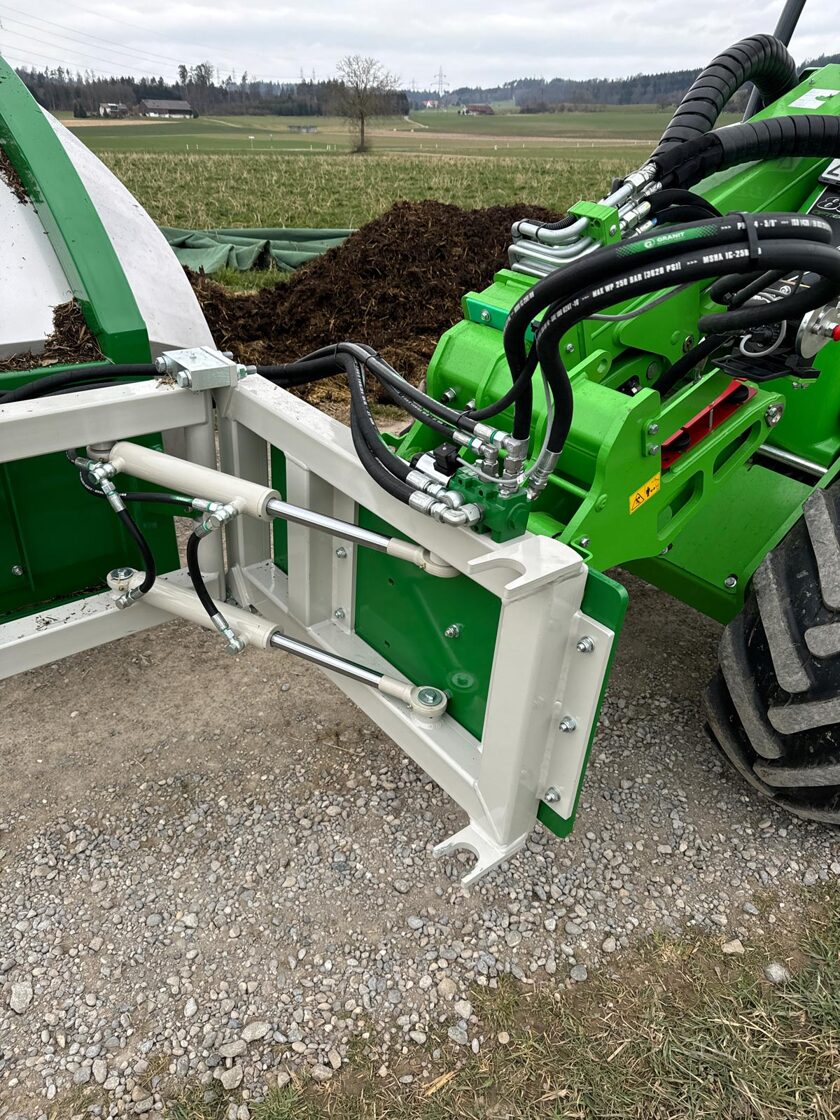

- Euro mount

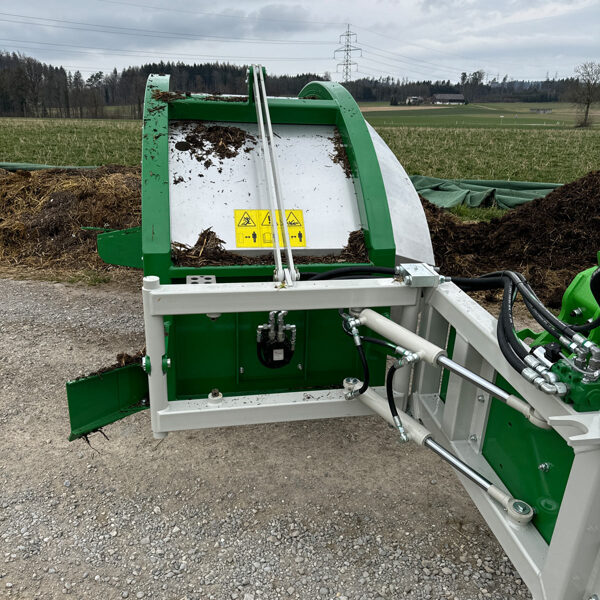

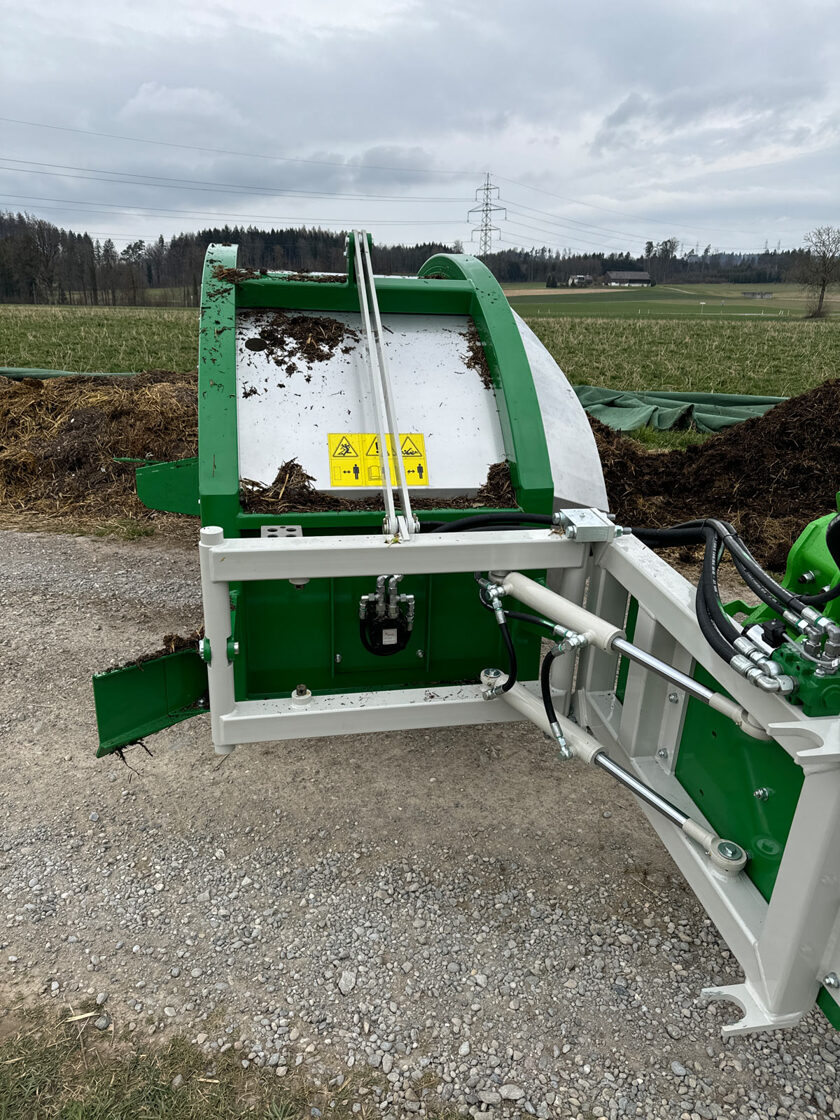

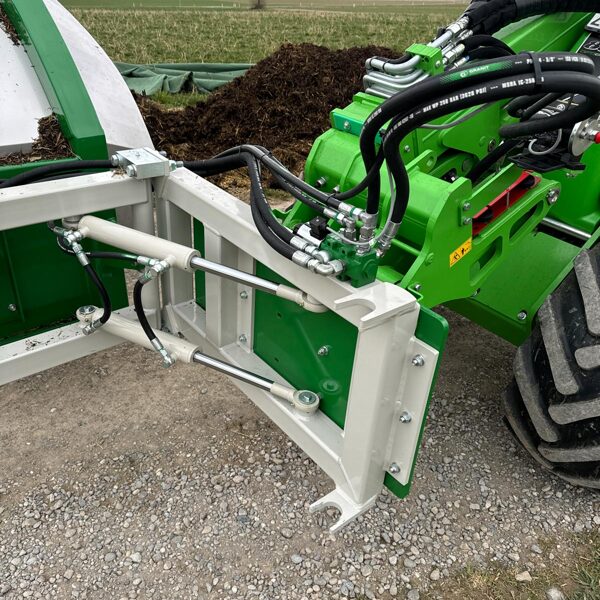

- External loader mount
* For machine widths from 2.30 m | Ideal for agriculture, market gardens, organic farms and small communes with a composting capacity of up to 1000 tonnes per year. - Turning capacity up to 400 m³/h.

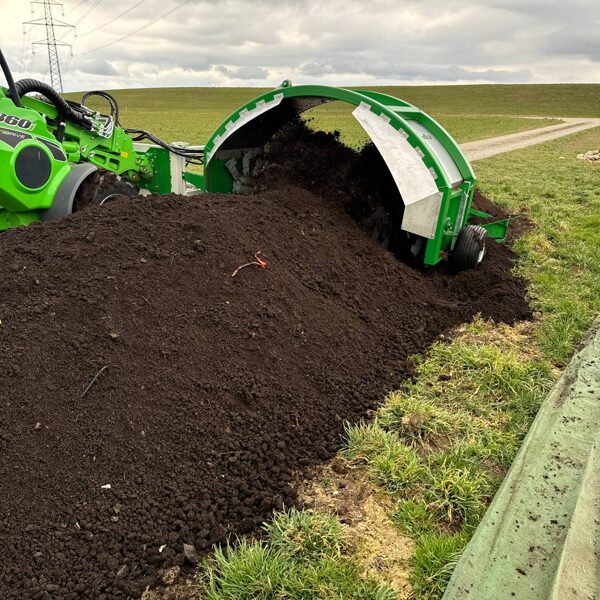

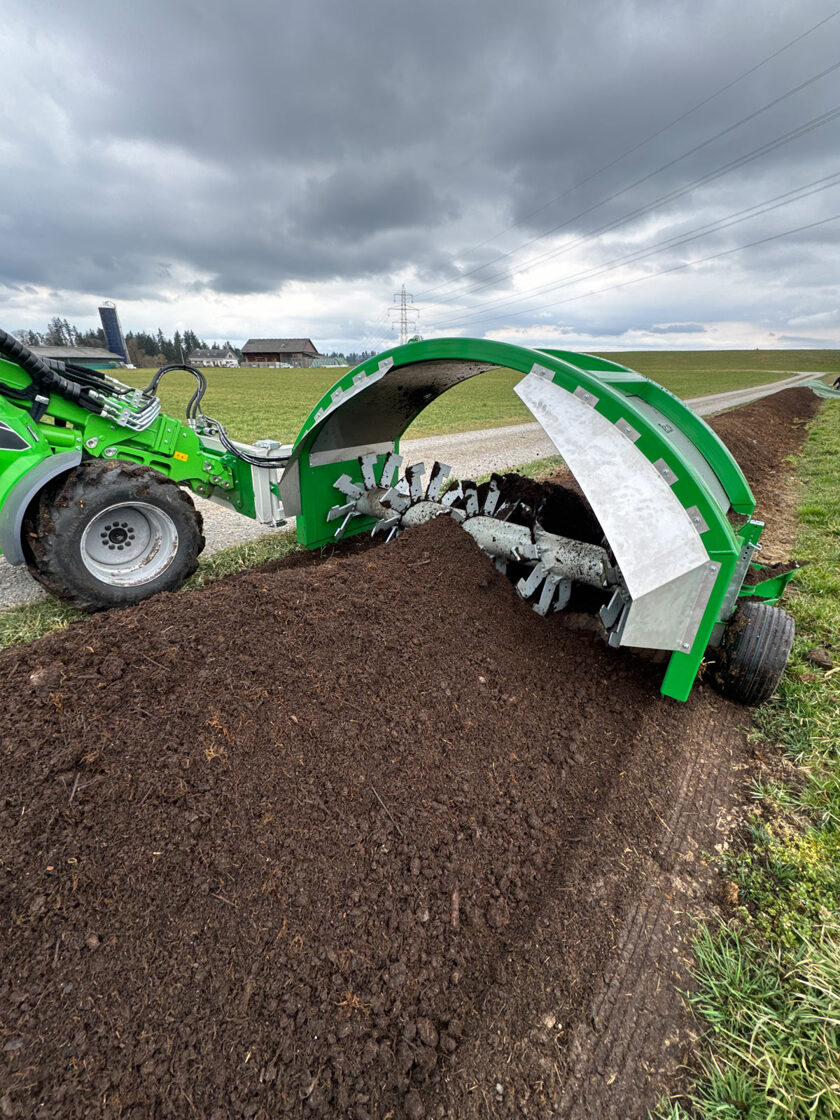

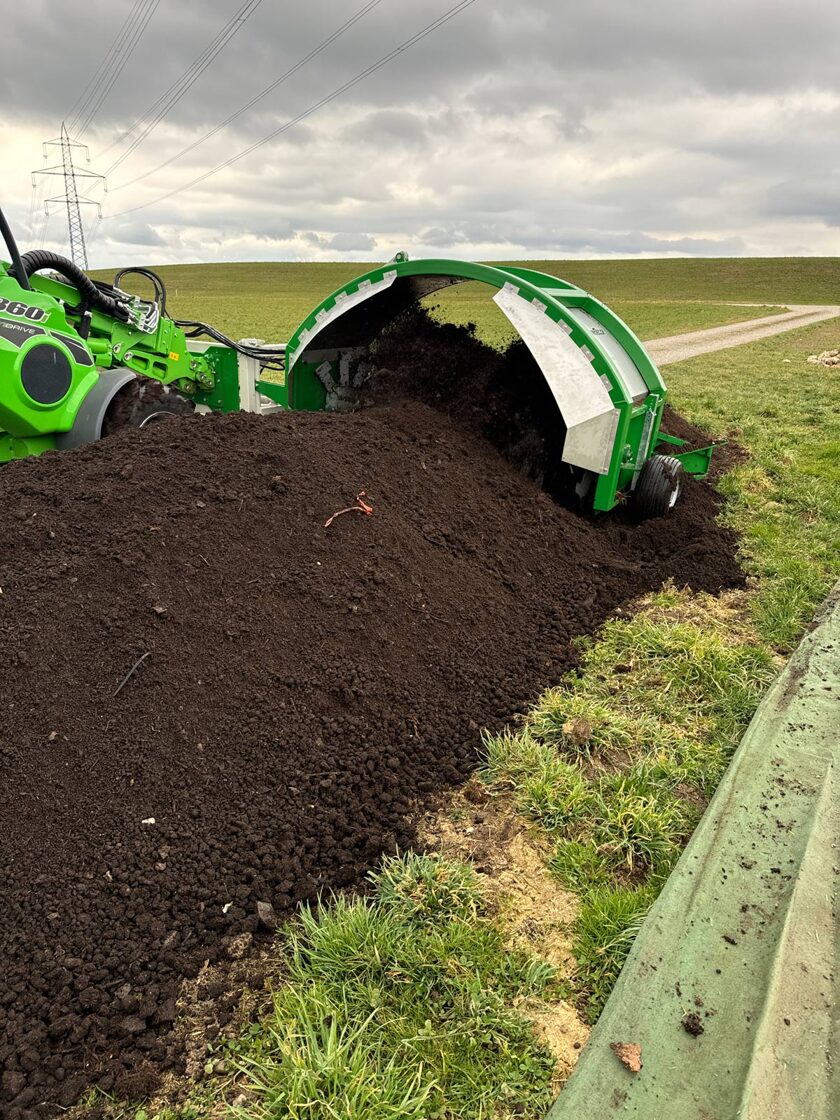

- Manoeuvrable machine; the TG 233 compost turner is only 3.1 m long in the transport position.
- Low maintenance costs, very simple maintenance.
- Easy handling, simple operation.

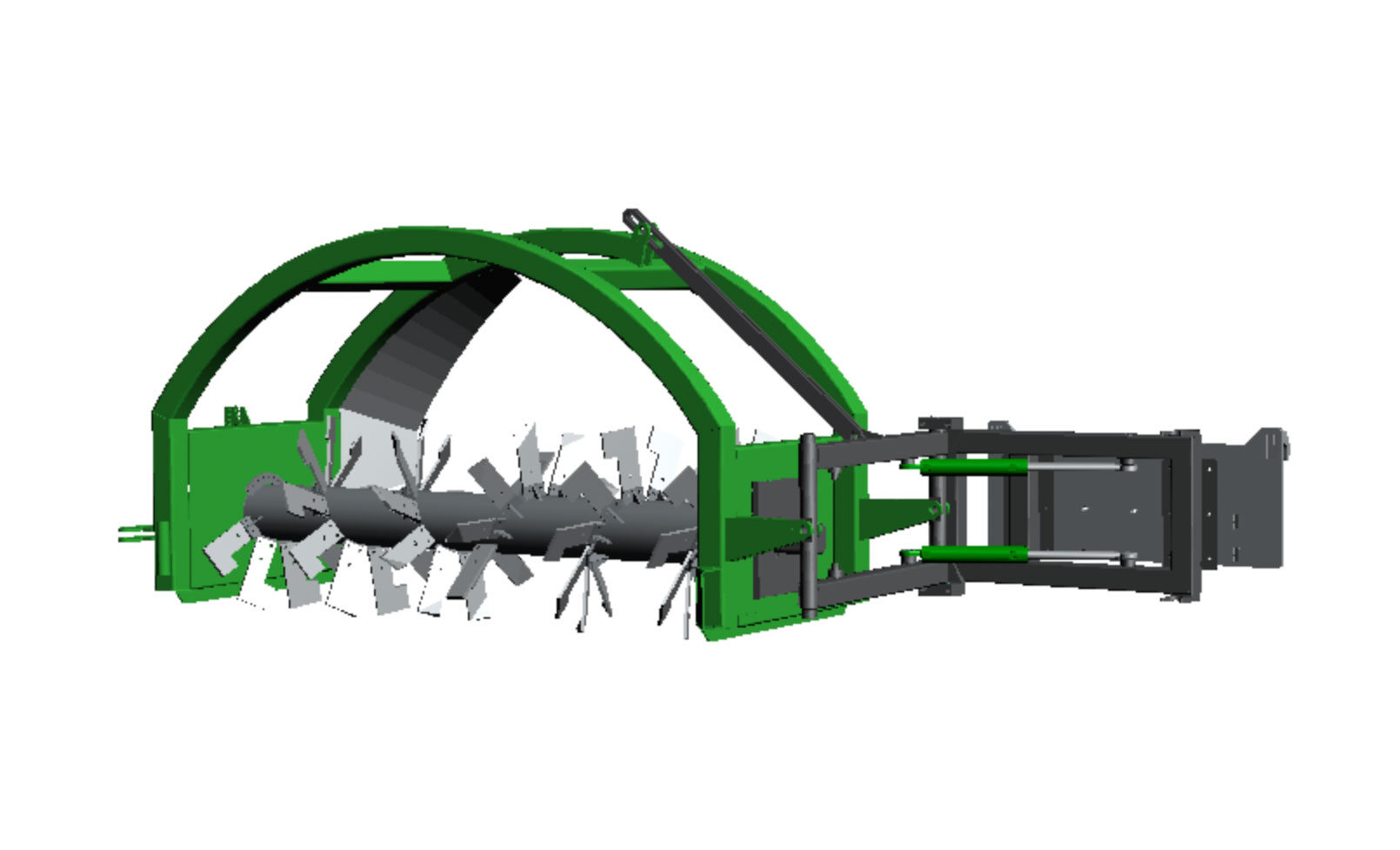

- The solid arch construction of the tunnel made of 5 mm steel achieves very high stability, has no weak corners and the powder coating prevents corrosion.
- All wear plates are made of chrome steel.

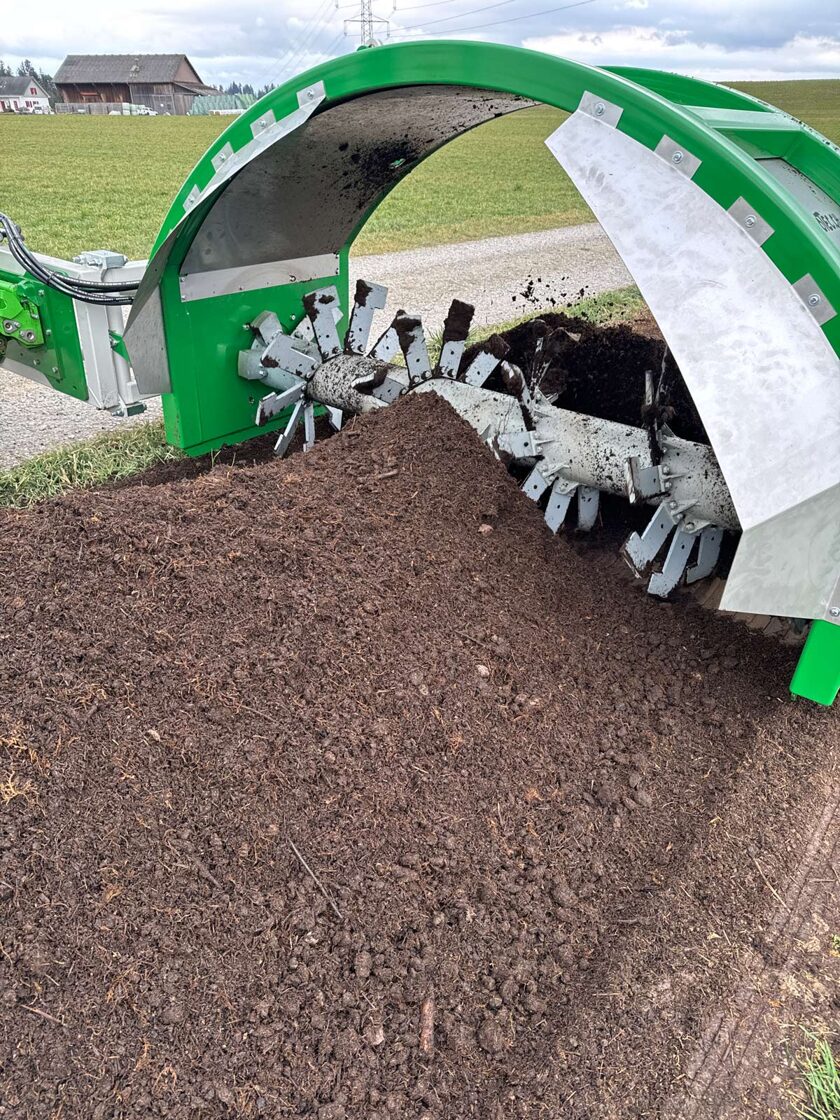

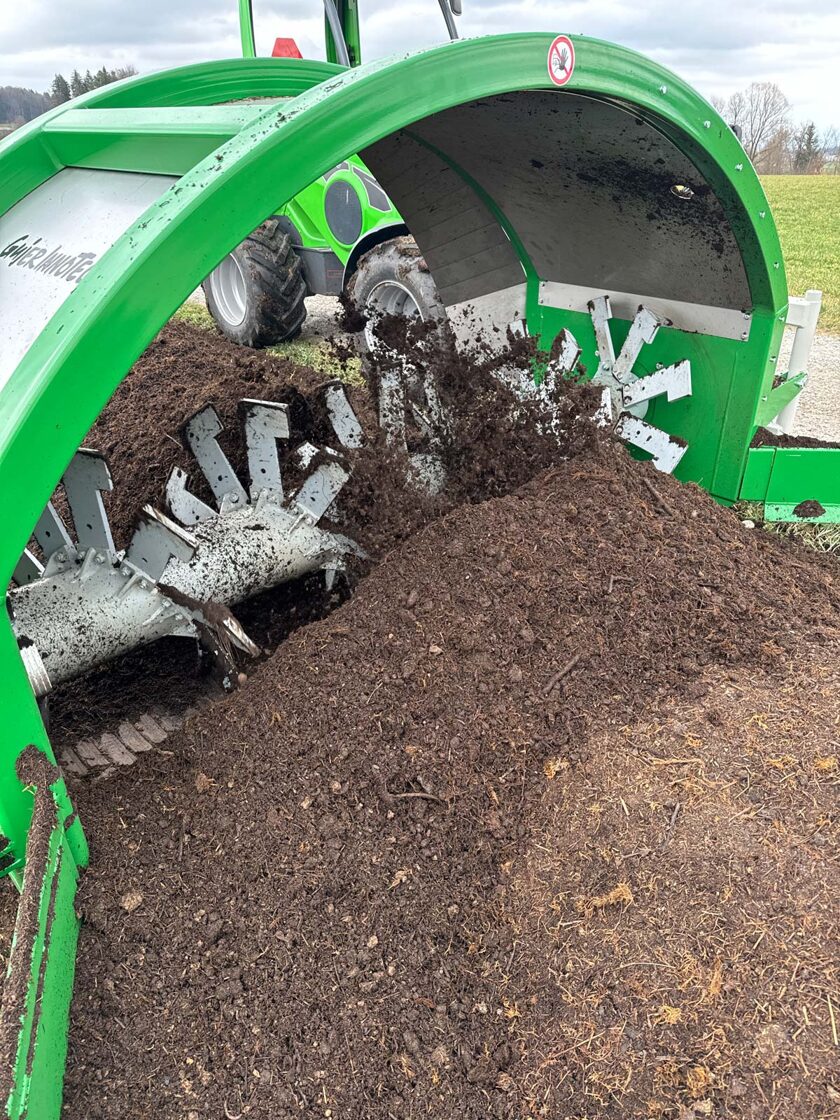

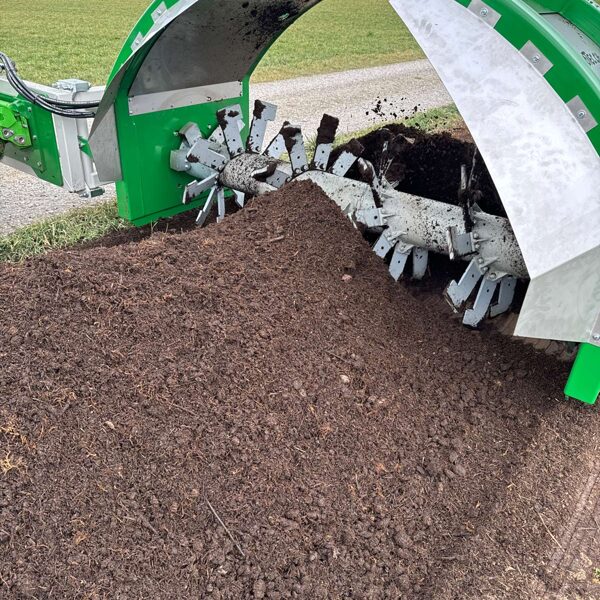

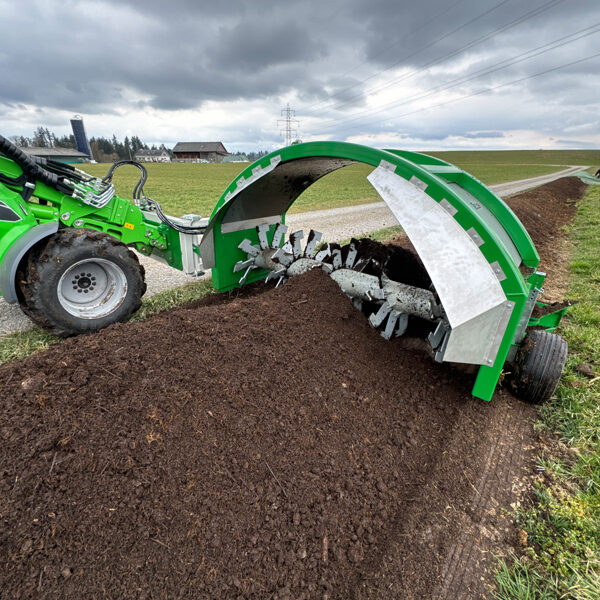

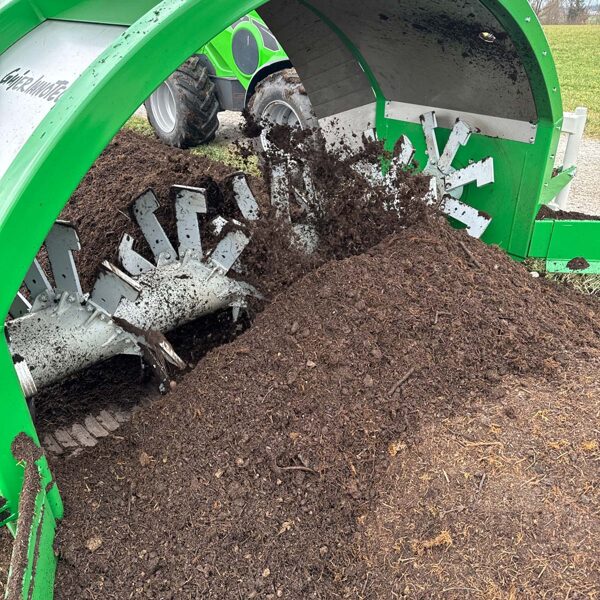

- Robust, balanced turning shaft that turns the material to be composted correctly (from the inside to the outside).
- Rapid aerobic composting; within 8 - 12 weeks, depending on the material.
|
